Monaural Attenuators
Description
Features
Specifications
Applications
Description
VAT20 / VAT40 / VAT100 Description
The VAT Series from Penton Audio USA are constant-voltage attenuators that feature high-quality components and clever engineering. Models have a ten position make-before-break contacts with a positive off position. Series includes 20, 40 and 100-watt models with an optional premounted priority relay (specify -PS).

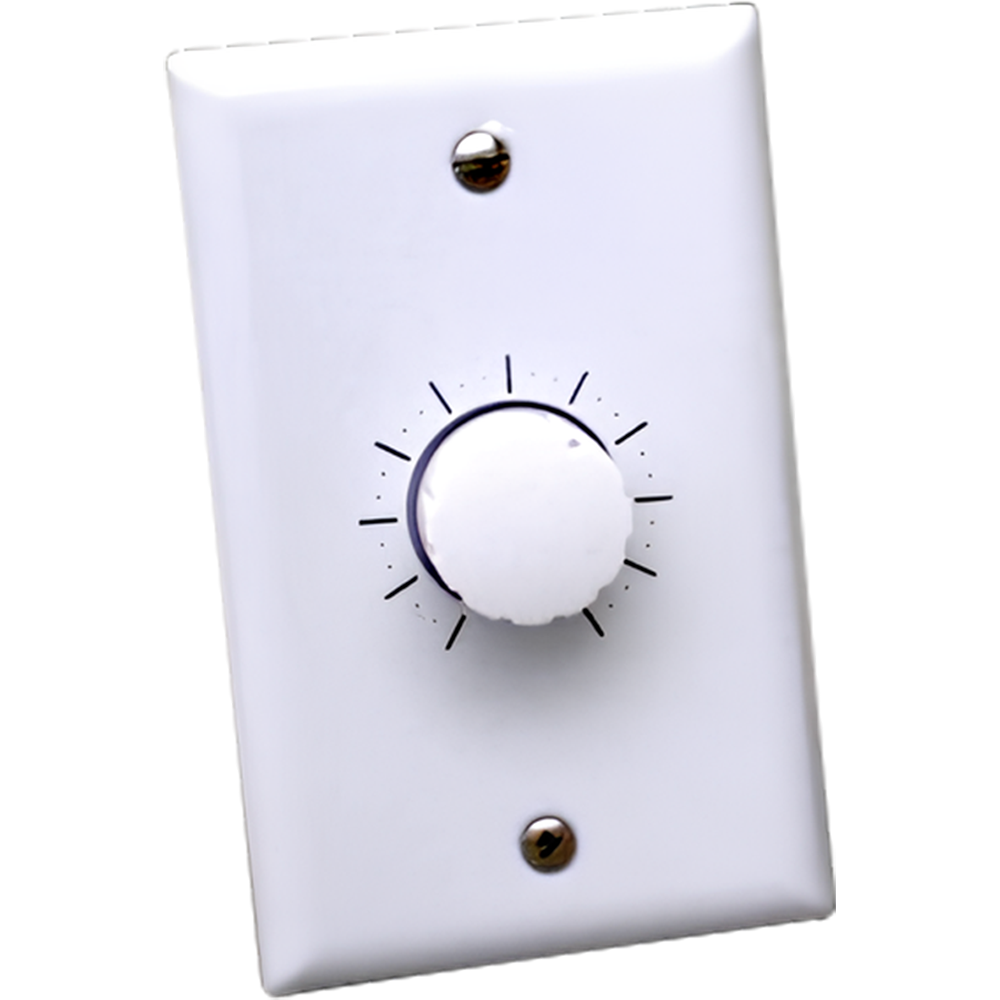

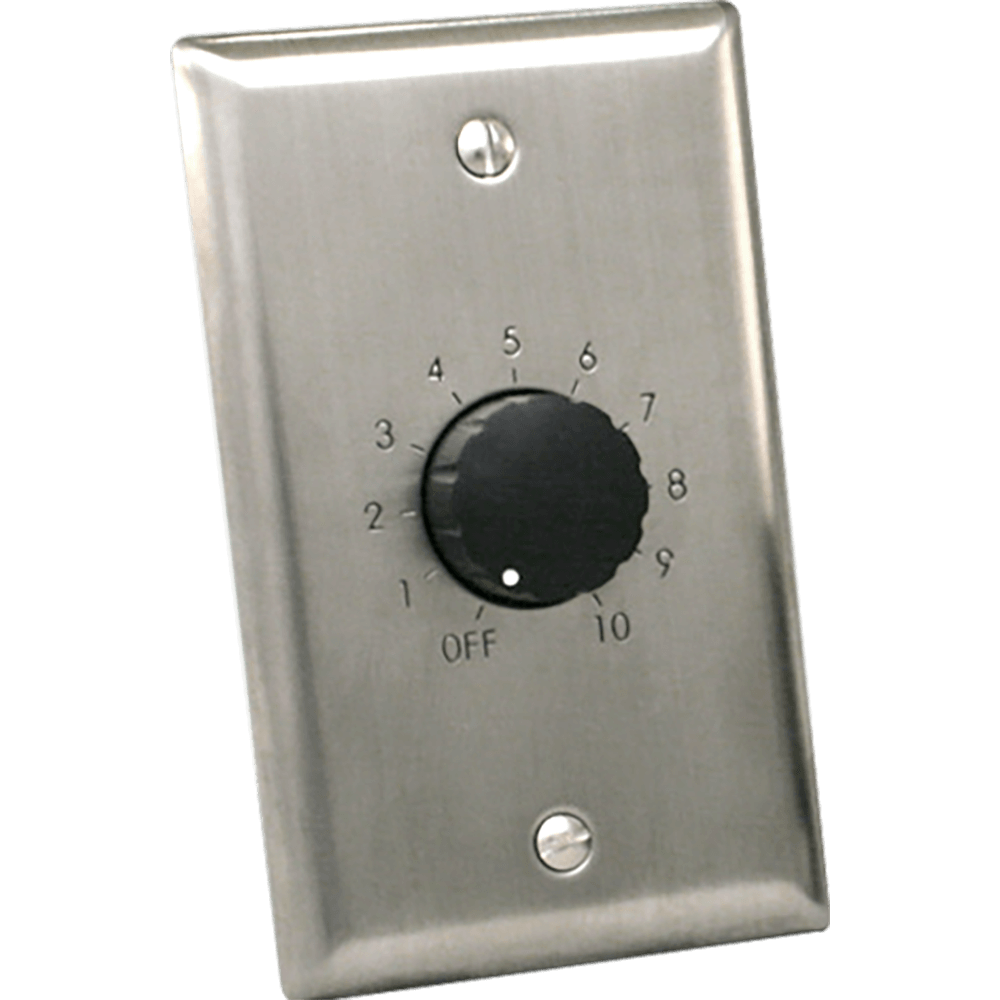

Models consist of an auto-transformer, wallplate and a low-profile, locked-on knob. By specifying colors, mounting plates with matching knobs are chosen: (-W) for white, (-S) for stainless steel with a contrasting black knob.
Installation is quick with the VAT’s molded-in orientation arrow, installerfriendly phoenix-style connector and the inventive (patent applied for) locked on knob, that is secured without a setscrew.
Features
VAT20 / VAT40 / VAT100 Features
- Choose 20, 40 or 100-watts
- Mounts in single-gang box
- Phoenix-style Connectors
- Loop Out Connection
- Clever Lock-on Knob
- Low Insertion Loss
- Stainless Steel or White
Specifications
VAT20 / VAT40 / VAT100 Specifications
| POWER RATING (RMS) | VAT20: 20 watts VAT40: 40 watts VAT100: 60 watts |
| TRANSFORMER TYPE: | Auto Transformer |
| DISTORTION: | Less Than 1% at Rated Output |
| INSERTION LOSS: | 0.5 dB |
| FREQUENCY RESPONSE: | 20-20kHz +/- 1/2 dB |
| TOTAL ATTENUATION: | 30 dB |
| ATTENUATION PER STEP: | 3 dB |
| ATTENUATION POSITIONS: | 10 plus Off |
| CONNECTOR (PHOENIX-STYLE) | Non-priority: 6 Pin Priority: 8 Pin |
| CONNECTIONS | Speaker: +/- Amp In: +/- Loop Out: +/- |
| CONNECTIONS PRIORITY MODELS | Speaker: +/- Amp In: +/- Loop Out: +/- DCV (DC Voltage): +/- |
| KNOB PROTRUSION, INCH (MM): | 0.5″ (13) |
| KNOB MATERIAL AND FINISH: | -S: Black -W: White |
| MOUNTING PLATE MATERIAL | White: ABS Stainless Steel: Stainless Steel |
| MOUNTING PLATE REQUIREMENTS | VAT20: Single Gang VAT40: Single Gang VAT100: Single Gang |
| DIMENSIONS, INCH (MM) | VAT20: 4.53″ x 2.76″ x 1.79″ (115 x 70 x 45.5) VAT40: 4.53″ x 2.76″ x 2.19″ (115 x 70 x 55.5) VAT100: 4.53″ x 2.76″ x 2.30″ (115 x 70 x 58.5) |
| NET WEIGHT LBS (GRAMS) | VAT20: 0.51 (233) VAT20-PS: 0.53 (240) VAT40: 0.67 (306) VAT40-PS: 0.69 (315) VAT100: 0.76 (346) VAT100-PS: 0.78 (355) |
Applications
VAT20 / VAT40 / VAT100 Applications
Installed constant-voltage speakers may need to vary in level intensity on a regular basis independent of other speakers in the system. Attenuators provide this feature. Since models are often in plain sight, aesthetic considerations demand that popular colors are available.
Applications include restaurants, hotel/ motels, executive offices, boardrooms, churches, retail environments and country clubs among others.
