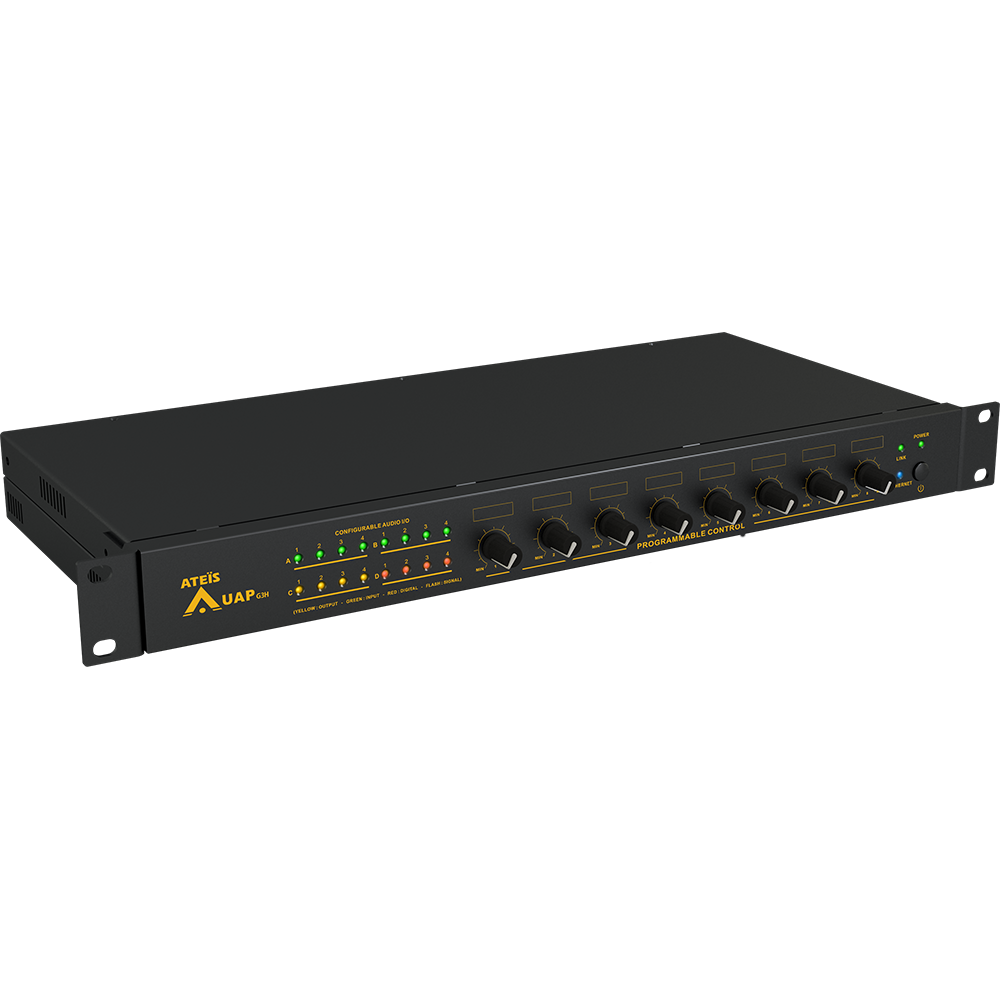

The UAP G3/UAP G3H is a linkable DSP audio processor which comes with 4 modular card slots. The options of 4 card slots include analog audio cards, digital audio I/O cards and specialty cards such as VoIP card, AEC card, analog telephone card, OCTOLINK card and AES-EBU card. The I/O combination range is 4Ix4O, 4Ix8O, 8Ix4O, 8Ix8O, 4Ix12O, 12Ix4O, 16I or 16O. Using OCTOLINK cards up to 32Ix32O audio I/O’s can be configured. Up to 5 UAP G3/UAP G3H processors can be cascaded via Digi-Link bus. The UAP G3/UAP G3H can be linked via CAT5/6/7 cable with metal shielded RJ45 connector (max. length 33 ft/10m between units). Each OCTOLINK port provides 2 audio channel inputs and 2 audio channel outputs which simultaneously transmit bidirectional data in digital format, providing an easy connection to remotes such as paging console, wall mount controller and ceiling mount microphone. The connection between the UAP G3/UAP G3H and remote device is using STP CAT5/6/7 cable with metal shielded RJ45 connector with a max. communication distance of 820 ft/250m.
Please refer to the spec sheet regarding the configuration of each model of UAPg3 you need.
As a state of the art DSP processor, the UAP G3/UAP G3H incorporates full drag n’ drop DSP component libraries such as AGC, AEC, Ducker, various kinds of Mixer, Delay, A.N.G (Auto Noise Gain), ANR (Ambient Noise Reduction), PEQ, Feedback, Hi/Lo Pass, message player, event scheduler for element adjustment, preset changes and event control, dynamic zone paging, In/Out audio streaming, VoIP/SIP for teleconferencing, level control, telephone transmit/receive, audio recorder, etc. making the entire system expandable and easy to program and integrate. The UAP G3/UAP G3H features 8 programmable knobs, each knob can be programmed to a desired DSP function, for example volume in a zone. With ATEÏS’s optional AEC-Card (Acoustic Echo Cancellation) using our ultra-fast patent RAPIDO™ AEC algorithm, the UAP G3H is capable to use VoIP and SIP functionality for distance and web-conferencing applications. The UAP G3H can be integrated with various remote inputs, outputs or controllers for a variety of applications. Logic I/O, RS485 and Ethernet is also available for 3rd party control.
