Ceiling Speakers
LIS - Lay-in Speaker Packages with 8" Cone Speaker
Description
Features
Specifications
Applications
Description

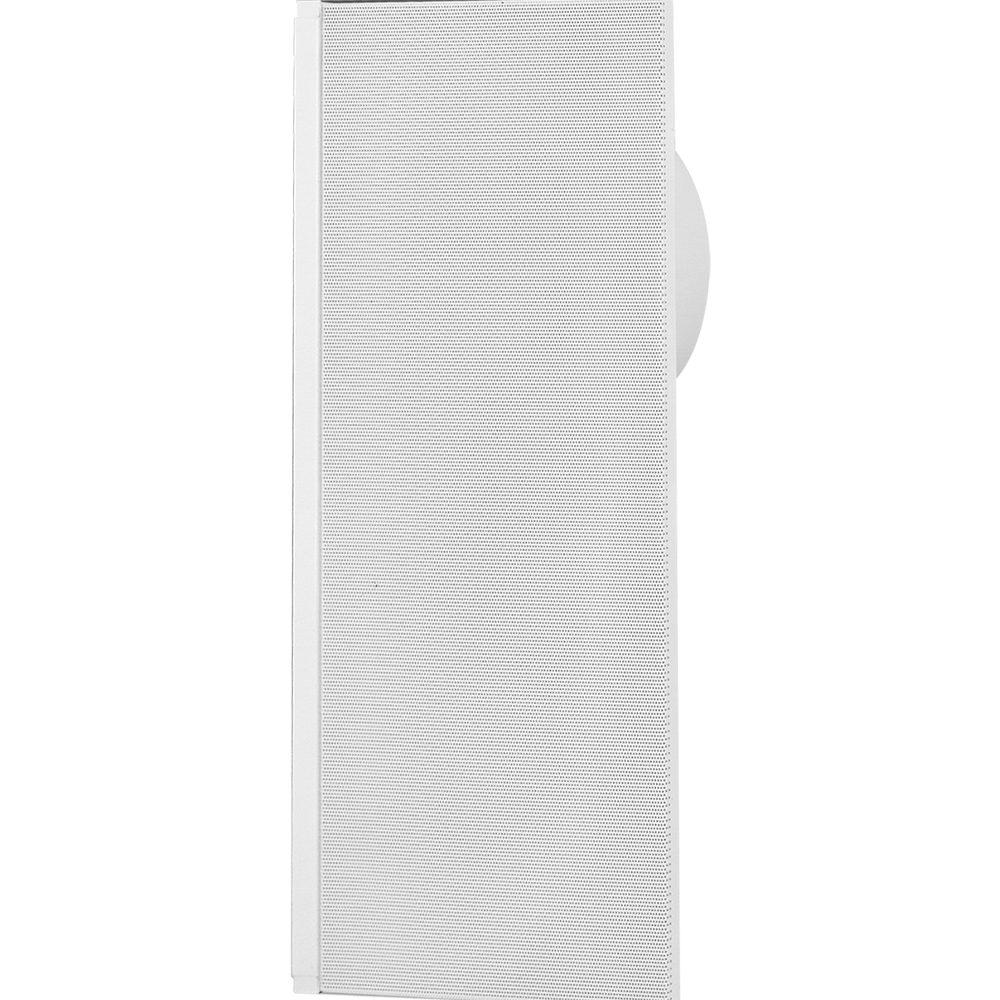

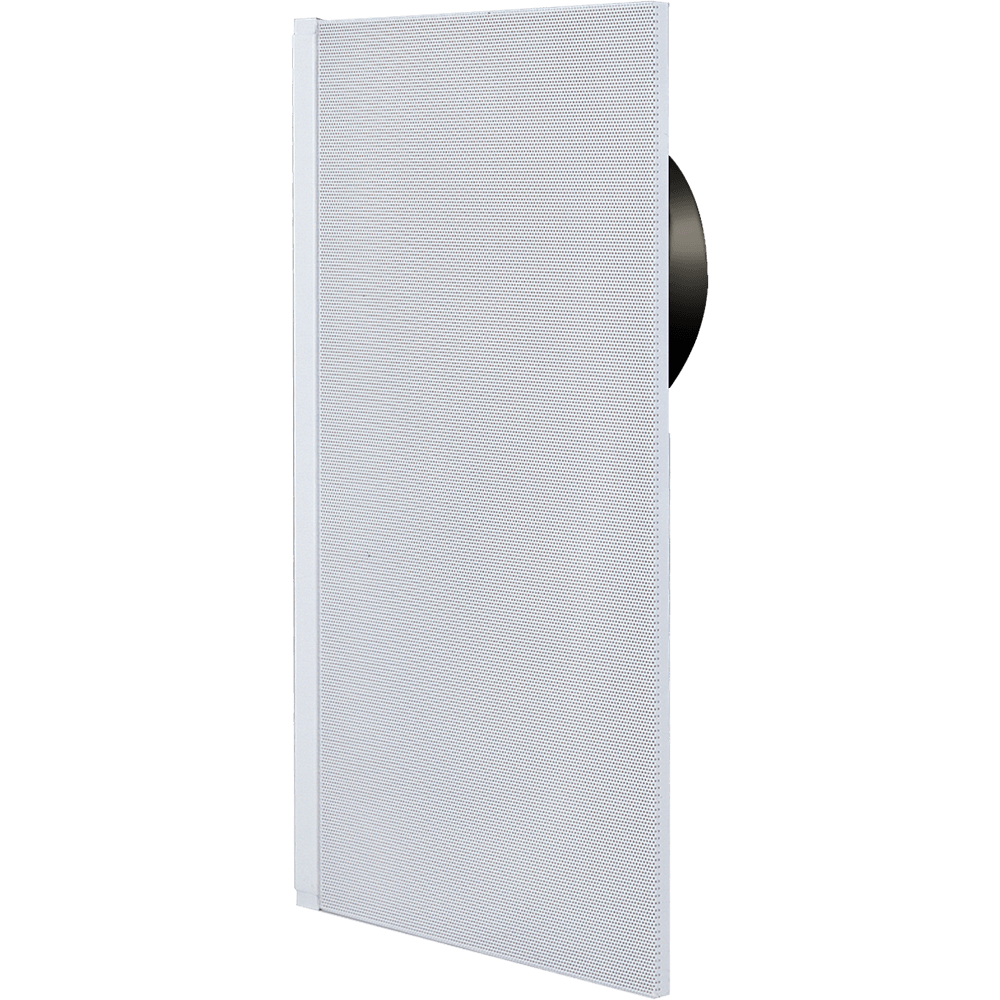

LIS8T / LIS8+T / LIS8XT Description
The Penton Audio LIS Series full-range, lay-in speaker packages are economical one-piece assemblies designed to speed installation in traditional 2′ x 4′ and 2′ x 2′ suspended tile ceilings. Conservatively rated each unit combines a speaker, 70.7/25-volt transformer and enclosure, all attached to grid assembly that also serves as a tile bridge.
The LIS Series exclusives wedged support lines up the grille with the tile. It is not just pleasing to the eye, but is convenient for the installer. Enclosure has 6″ five-conductor wire exiting the housings through the top.
Models use different assemblies; LIS8T and LIS8+T employing twin-cones and a 5-watt transformer. (The LIS8+T has a 15-watt speaker with a 10-ounce magnet.) An 8-watt transformer is stock on the coaxial LIS8XT which has a treated cone with rubber surround and a post-mounted, 3″ paper-cone tweeter having a 1/2″ moving coil.
Features
LIS8T / LIS8+T / LIS8XT Features
- One-piece Assembly Saves Installation Cost
- Choose Between 5, 10-ounce Twin Cone or Coaxial Model
- Grille Matches Ceilings and Fixtures
- Dual 70.7/25-volt Xfrmr for Use in Most Applications
Specifications
LIS8T / LIS8+T / LIS8XT Specifications
| CONE SPEAKER SIZE: | 8″ (203 mm) |
| FREQUENCY RESPONSE: | LIS8T: 60-20,000 Hz +/- 6 dB LIS8+T: 60-20,000 Hz +/- 6 dB LIS8XT: 50-16,000 Hz +/- 6 dB |
| POWER HANDLING (RAW DRIVER): | LIS8T: 10 watts LIS8+T: 15 watts LIS8XT: 20 watts |
| SPL @ 1W 1M: | LIS8T: 95 dB LIS8+T: 96 dB LIS8XT: 94 dB |
| DISPERSION @ 2 KHZ (6 dB DOWN): | LIS8T: 100 degrees LIS8+T: 100 degrees LIS8XT: 96 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ | LIS8T/LIS8+T: 6.90 LIS8XT: 6.80 |
| CONE MATERIAL AND SURROUND: | LIS8T/LIS8+T: Self-edged Paper LIS8XT: Treated Paper |
| TRANSFORMER MAX INSERTION LOSS: | LIS8T/LIS8+T: 1.5 dB LIS8XT: 0.8 dB |
| CONE DESIGN: | LIS8T/LIS8+T: Twin Cone LIS8XT: Coaxial |
| LIS8XT TWEETER TYPE: | 3″ Paper Cone with 1/2″ Moving Coil |
| CONNECTION: | Via Wire Nuts |
| 70.7-VOLT TRANSFORMER TAPS | LIS8T/LIS8+T: 5, 2, 1, 0.5, 0.25 LIS8XT: 8, 4, 2, 1, 0.5 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | LIS8T: 1K, 2.5K, 5K, 10K, 20K LIS8+T: 1K, 2.5K, 5K, 10K, 20K LIS8XT: 625, 1.25K, 2.5K, 5K, 10K |
| 25-VOLT TRANSFORMER TAPS: | LIS8T/LIS8+T: 5, 2, 1, 0.625, 0.25 LIS8XT: 8, 4, 2, 1, 0.5 |
| 25-VOLT TRANSFORMER IMPEDANCE: | LIS8T: 125,312, 625, 1K, 2.5K LIS8+T: 125, 312, 625, 1K, 2.5K LIS8XT: 78, 156, 312, 625, 1.25K |
| TRANSFORMER TAP CHANGE: | Five-conductor Plenum-rated Wire |
| BAFFLE MATERIAL: | ABS with Molded-in UV Inhibitor |
| MAGNET WEIGHT: | LIS8T: 5.34 oz LIS8+T/ LIS8XT: 10 oz |
| FINISH | Non-reflective White Powder-coated Epoxy Paint |
| APPROVALS: | CE |
| DIMENSIONS L-W-D; INCH (MM): | 23.74 x 12.84 x 4.53 (603 x 326 x 115) |
| NET WEIGHT LBS (KGS): | LIS8T: 9.07 (4.12) LIS8+T: 9.62 (4.37) LIS8XT: 10.26 (4.66) |
Applications
LIS8T / LIS8+T / LIS8XT Applications
This family of products is for lightning-fast installation. When mounting in a traditional 2′ x 2′ or 2′ x 4′ dropped ceiling, only one perpendicular cut to the acoustical tile is needed.
The LIS Series is ideal for voice transmission, music and signal reproduction. Use these in commercial locations including offices, banks, educational institutions, restaurants, hotel/motels and other industrial/institutional/governmental applications where precise transmission of audio is required.
