Horns / Sound Projectors
MSH Series Large Format Music Horns
Description
Features
Specifications
Applications
Description

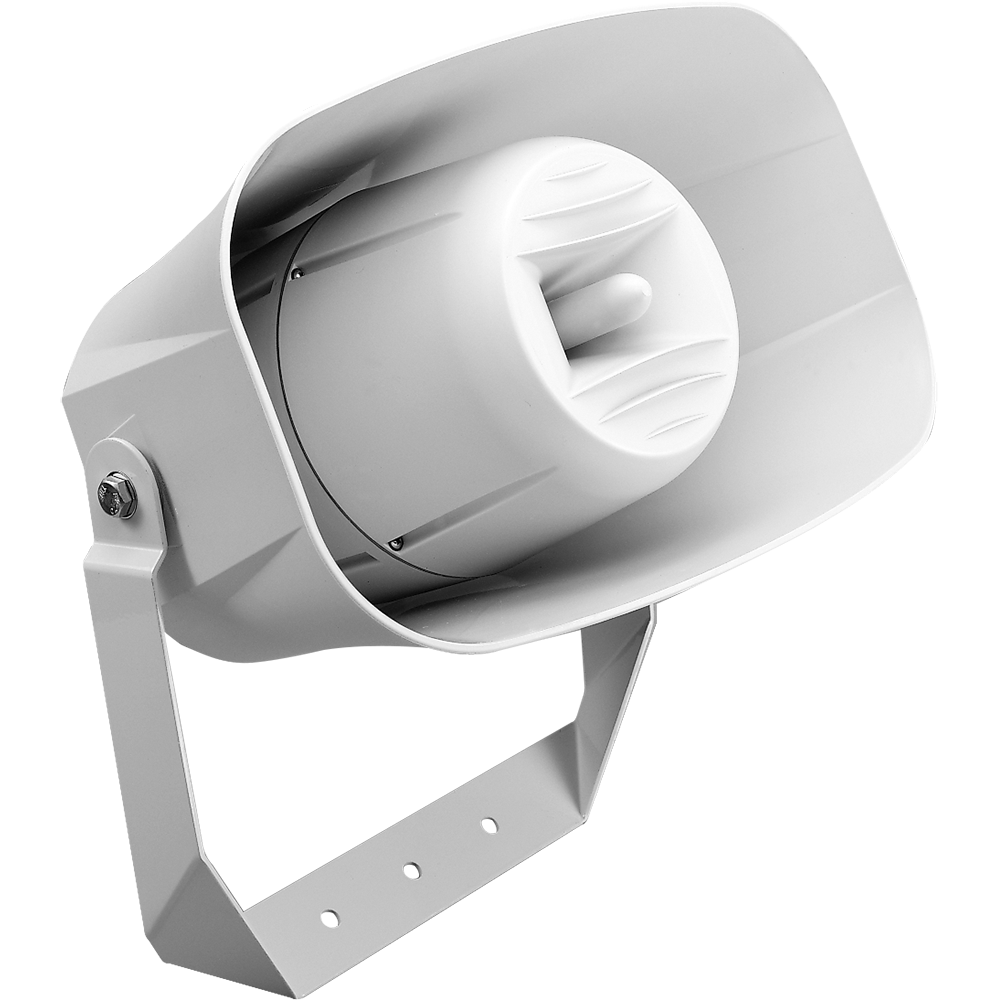

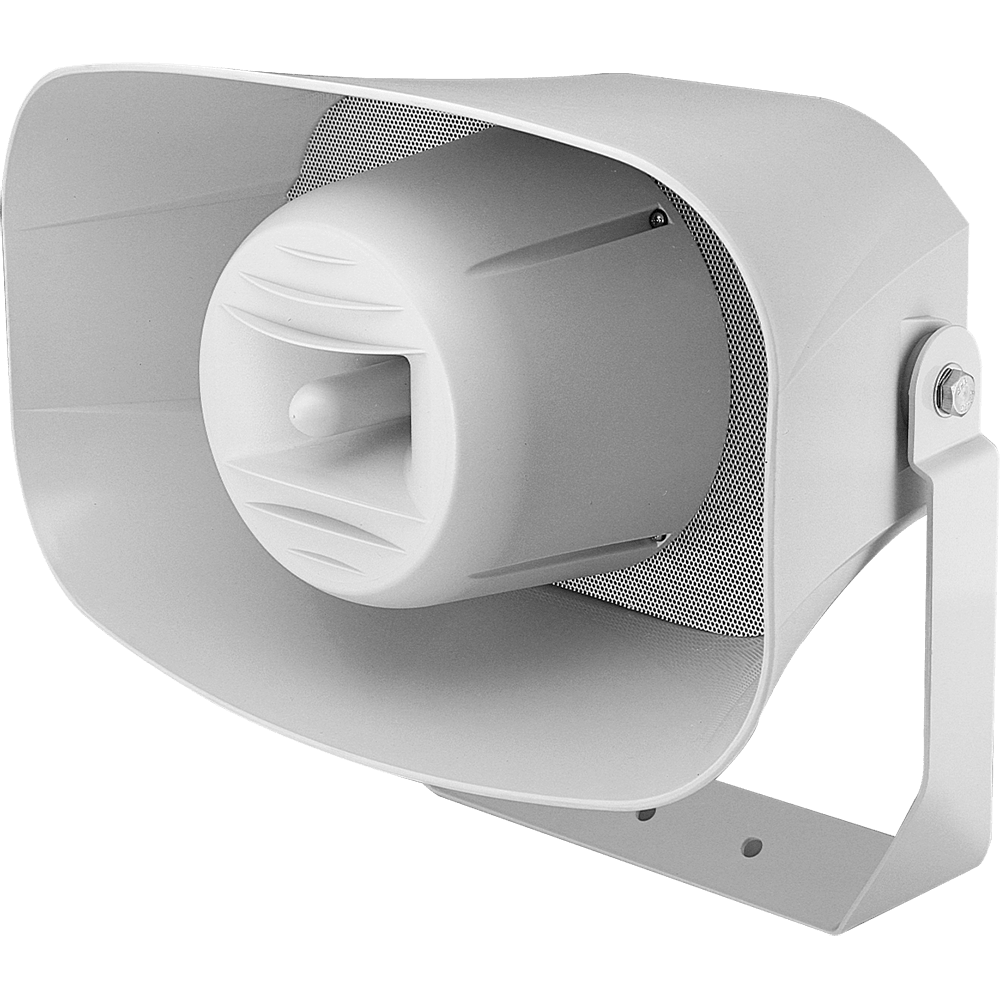

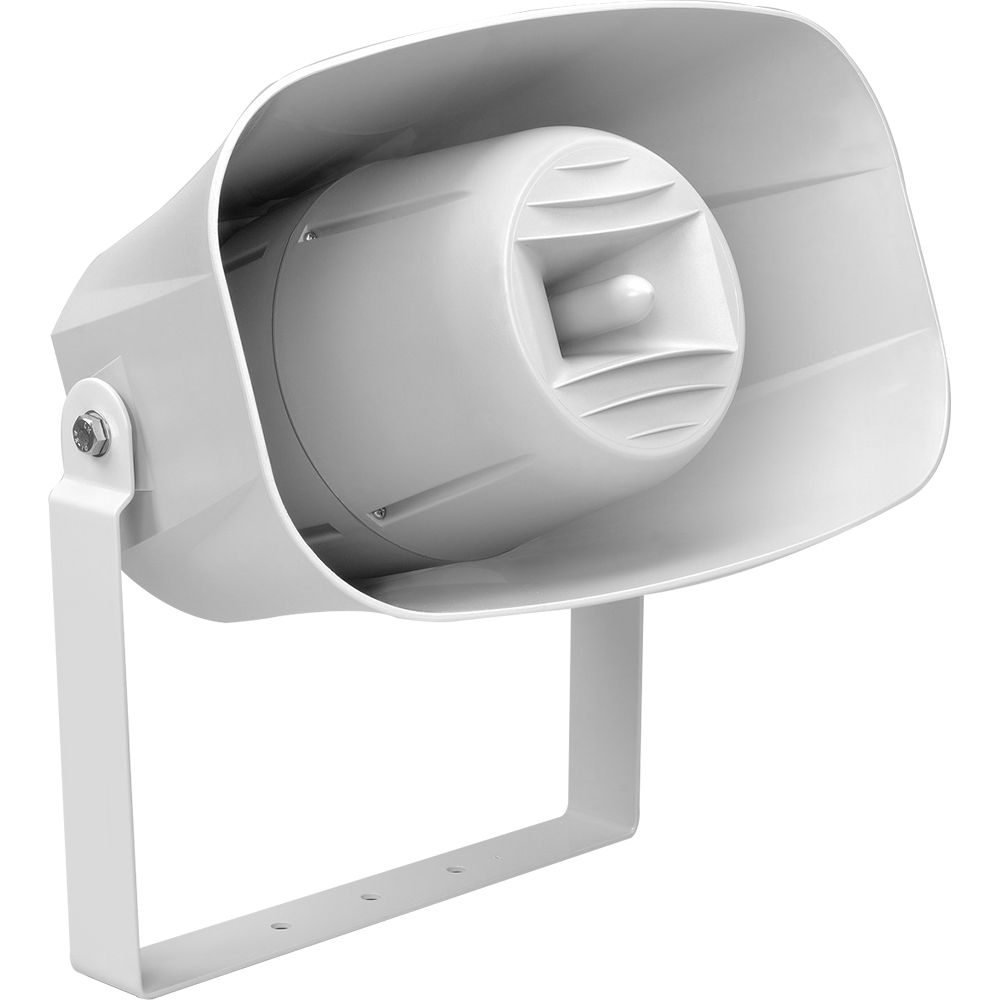

MSH60T / MSH30T Description
Penton Audio’s MSH60T and MSH30T are full-range, short throw, all-weather music projectors designed to be used in 70.7-volt systems. The sturdy ABS housing is protected from the elements with molded-in UV inhibitors, a bird/insect screen and stainless steel hardware.
Low frequencies are reproduced by a 6-1/2″ backward firing cone speaker complete with a rubber surround (treated to withstand moisture), while a horn tweeter reproduces the high frequencies. These models offer long-term reliability and even coverage for distributed audio.
Access to the internal connector block is via a cap secured with a Phillips-head screw. A gland nut allows a 9 mm diameter cable entry and a silicone “O” ring seals the unit from the rear. Visually identical, each is finished in non-reflecting cool gray with a matching aluminum “U” bracket.
Features
MSH60T / MSH30T Features
- Wide Frequency Response for Voice or Contemporary Music
- 116 dB or 112 dB Output
- Short-Throw Dispersion
- ABS Housing Weather-Sealed for Outdoor Use
- Stainless Steel Hardware
Specifications
MSH60T / MSH30T Specifications
| Speakers | HF: Moving Coil Tweeter LF: 6-1/2″ (165 mm) |
| Frequency Response: | MSH60T: 190-20,000Hz +/- 5 dB MSH30T: 190-18,000 Hz +/- 5 dB |
| Power Handling (Raw Driver) | MSH60T: 75 Watts MSH30T: 40 Watts |
| SPL @ 1w 1m | MSH60T: 99 dB MSH30T: 97 dB |
| SPL @ Full Power, 1m | MSH60T: 116 dB MSH30T: 111 dB |
| Dispersion @ 2 kHz (6 dB Down) | 112 degrees (V) x 90 degrees (H) |
| Directivity Q Factor @ 2 kHz | 6.5 |
| Lo-Frequency Speaker Design | Singal Cone |
| Cone Material | Coated Paper with Rubber Surround |
| Magnet Weight | LF: 17 oz HF: 11 oz |
| Transformer Max Insertion Loss | 0.5 dB |
| 70.7-Volt Transformer Taps (Watts) | MSH60T: 60, 30, 15, 7.5 MSH30T: 30, 15, 7.5 3,75 |
| 70.7-Volt Transformer Impedance | MSH60T: 83, 167, 333, 667 MSH30T: 167, 333, 667, 1.33k |
| Connection | Internal Terminal Block with Gland Entry for 20 mm Cable |
| Supplied Mounting Accessories | Stainless Steel Bracket Bolts |
| Housing Material | Molded ABS with UV Inhibitor |
| Accessory Included | Stainless Steel Bird/Insect Screen |
| Finish | Cool Gray |
| Approvals | CE; IP65 |
| Dimensions, Inch (MM) | 17.40 x 10.24 x 12 (w/gland nut) (442 x 260 x 305) |
| Net Weight LBS (KGS) | MSH60T: 13.21 (6.0) MSH30T: 12.2 (5.5) |
Applications
MSH60T / MSH30T Applications
The MSH series has been developed for situations requiring cost-effective quality sound at high sound pressure levels (SPL) in occasional unfriendly weather conditions.
They are ideal for sporting and recreational areas including public pools, fairs, celebrations, park districts as well as athletic venues such as tennis courts, baseball/football/soccer fields and competitive stadiums of all types. Commercial industrial uses include transportation hubs, corporate picnic areas, factories and outdoor showrooms including auto dealership lots.
