Horns / Sound Projectors
Indoor / Outdoor Cone Sound Projectors
Description
Features
Specifications
Applications
Description

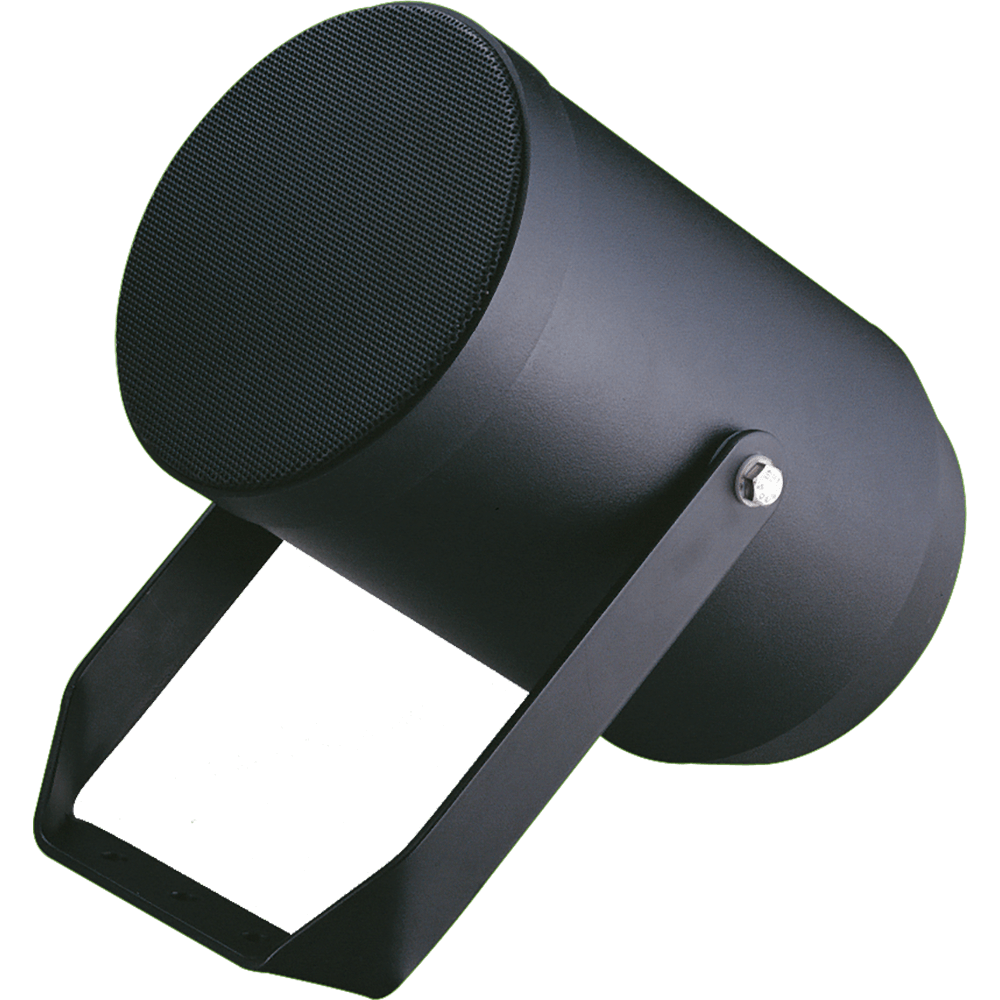

CAD10T / CAD20T Description
Penton Audio models CAD20T and CAD10T are twin-cone, all-weather, full-range music projectors designed for long-term reliability and even coverage in constant-voltage, distributed audio systems.
The handsome, molded ABS housing is protected from elements with a UV inhibitor and sealed from the rear with a silicone rubber-like gasket, a gland nut and stainless steel hardware.
The CAD Series uses a 5-1/4″ polypropylene cone that not only has moisture resistant qualities, but enhanced low frequencies as well.
Visually identical, they are finished in non-reflecting white with matching aluminum “U” brackets. (CAD20T-B is non-reflecting black.) Colors may be customized with epoxy paint.

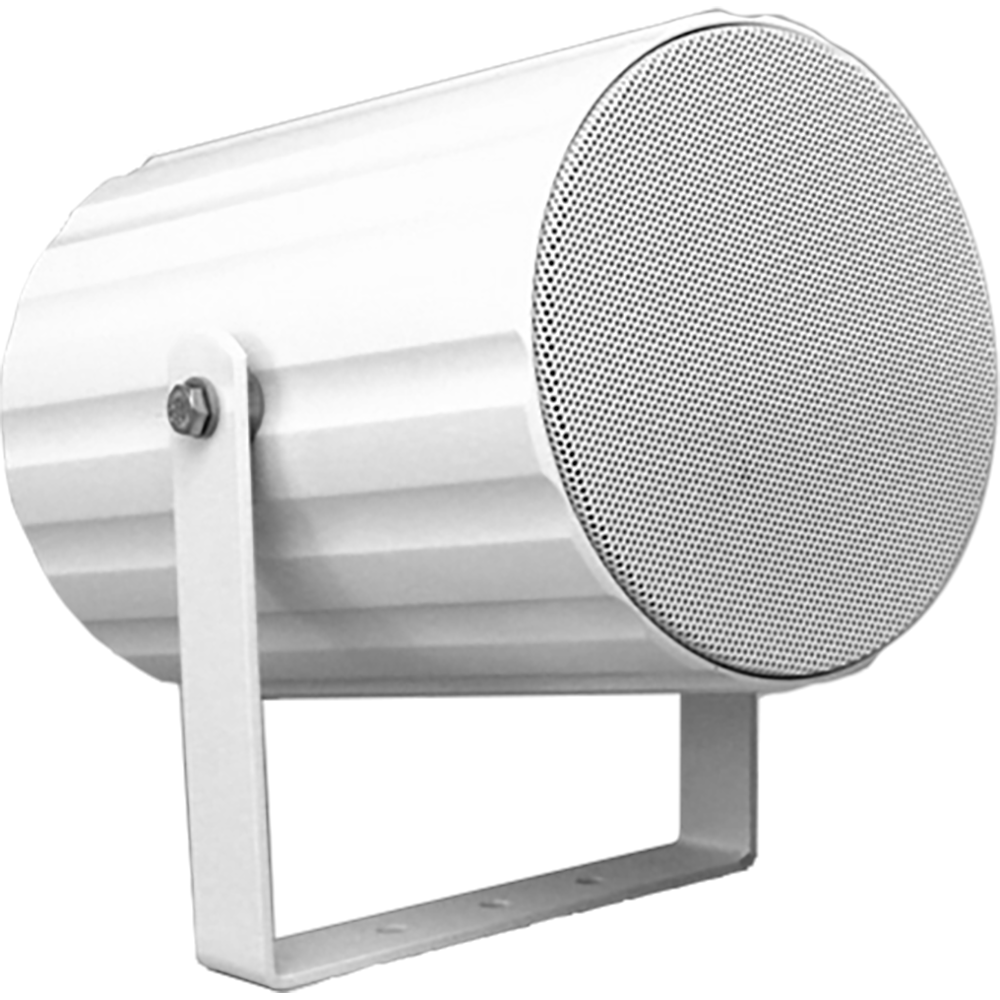

CELL10T / CELL20T Description

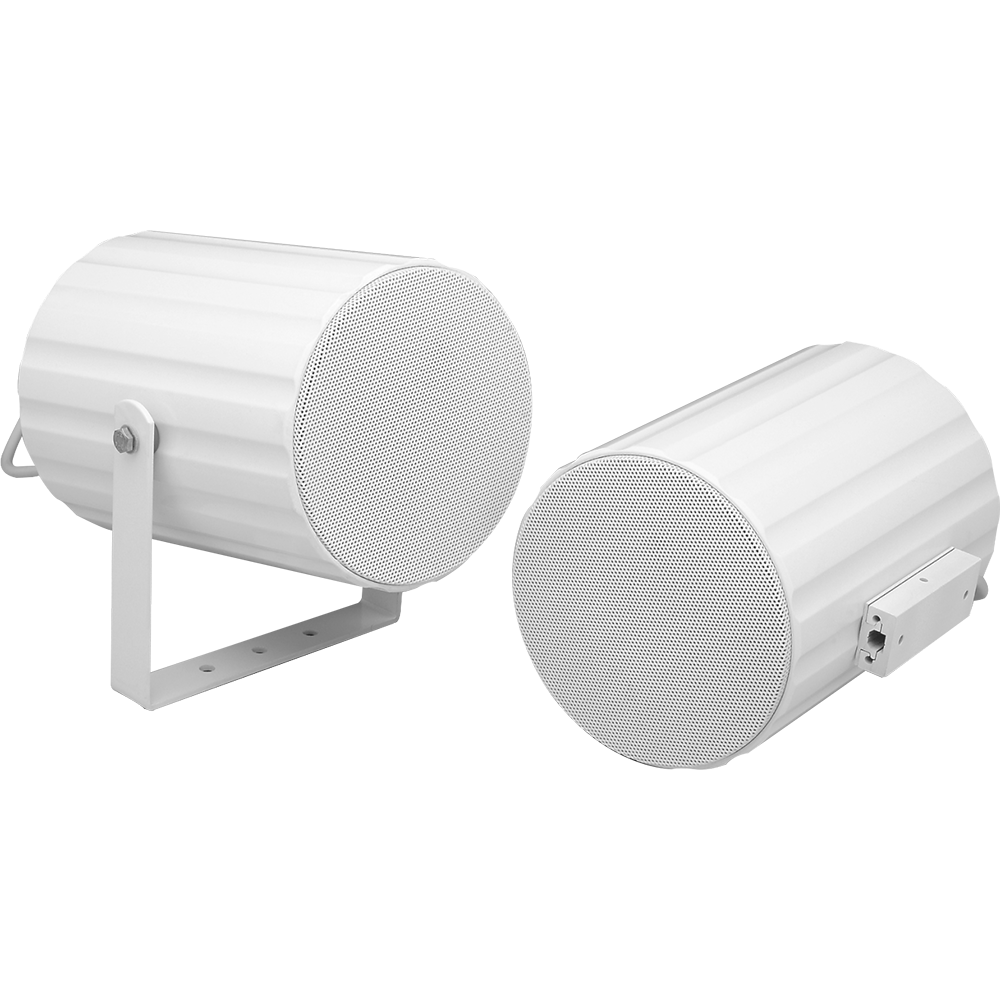

Penton Audio CELL20T and CELL10T are attractive, but rugged sound/music projectors for use in constant-voltage systems requiring quality audio. Each has a 5-1/4″ full-range twin-cone speaker. Units are rear sealed via a silicone rubber-like gaskets and gland nuts.
The CELL20T uses a polypropylene cone for use in outdoor environments, whereas the CELL10T uses a traditional paper cone for indoor applications. Both offer long-term reliability and even coverage.
Visually identical, both models have stainless steel hardware. They are finished in white with matching aluminum “U” brackets and aluminum grilles. Housings can be painted using epoxy paint.

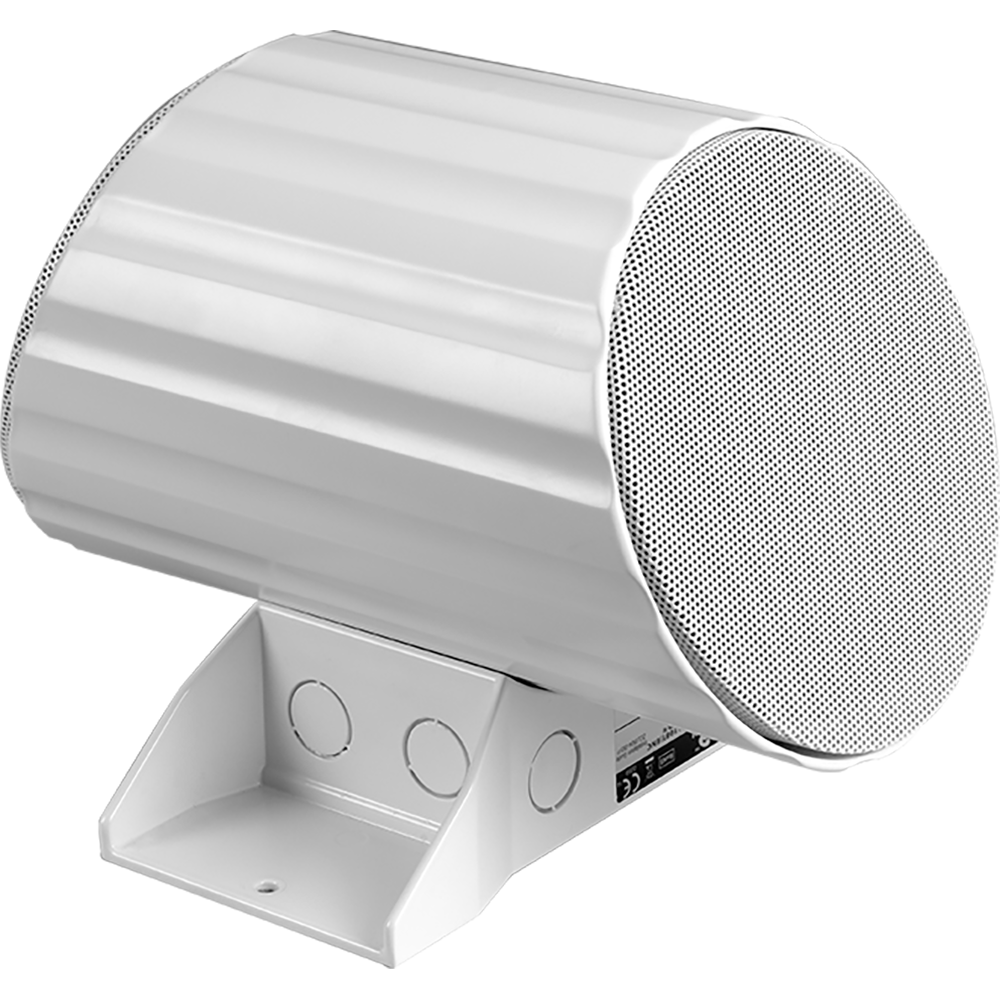

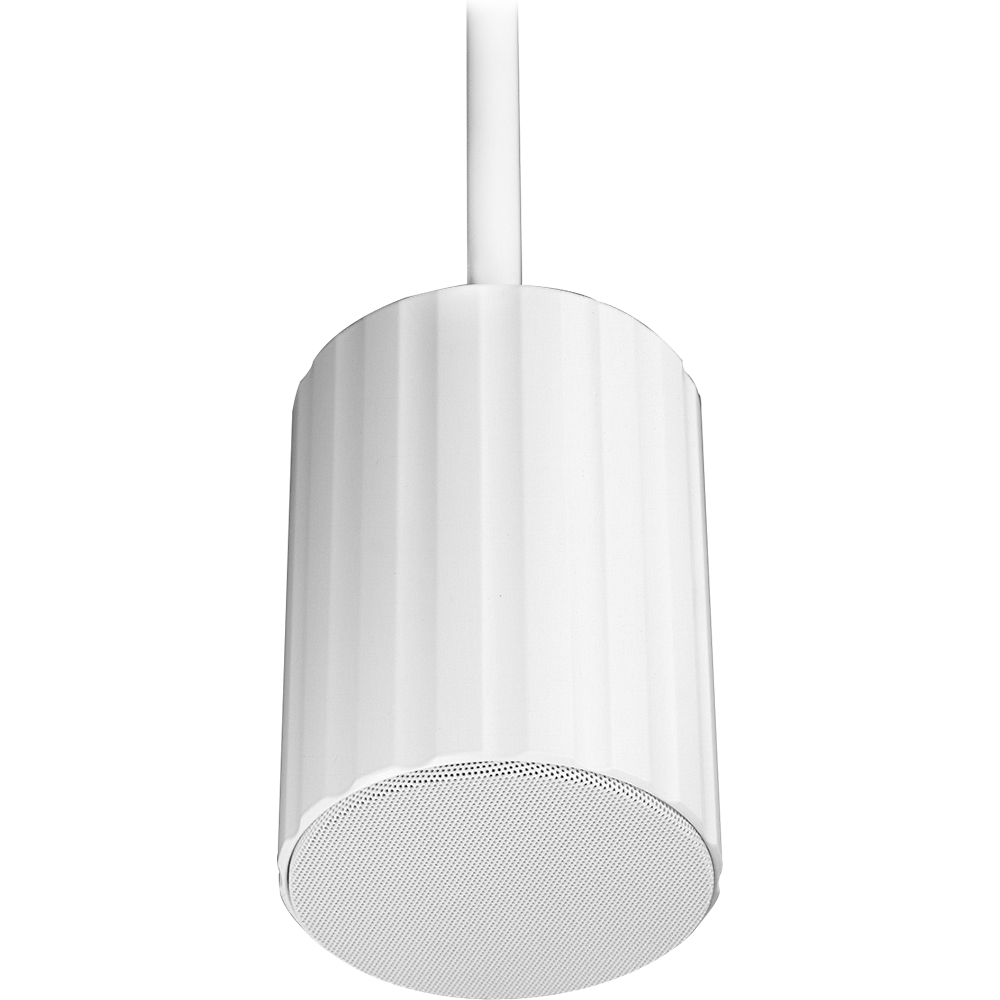

CELL10BDT / CELL20BDT Description

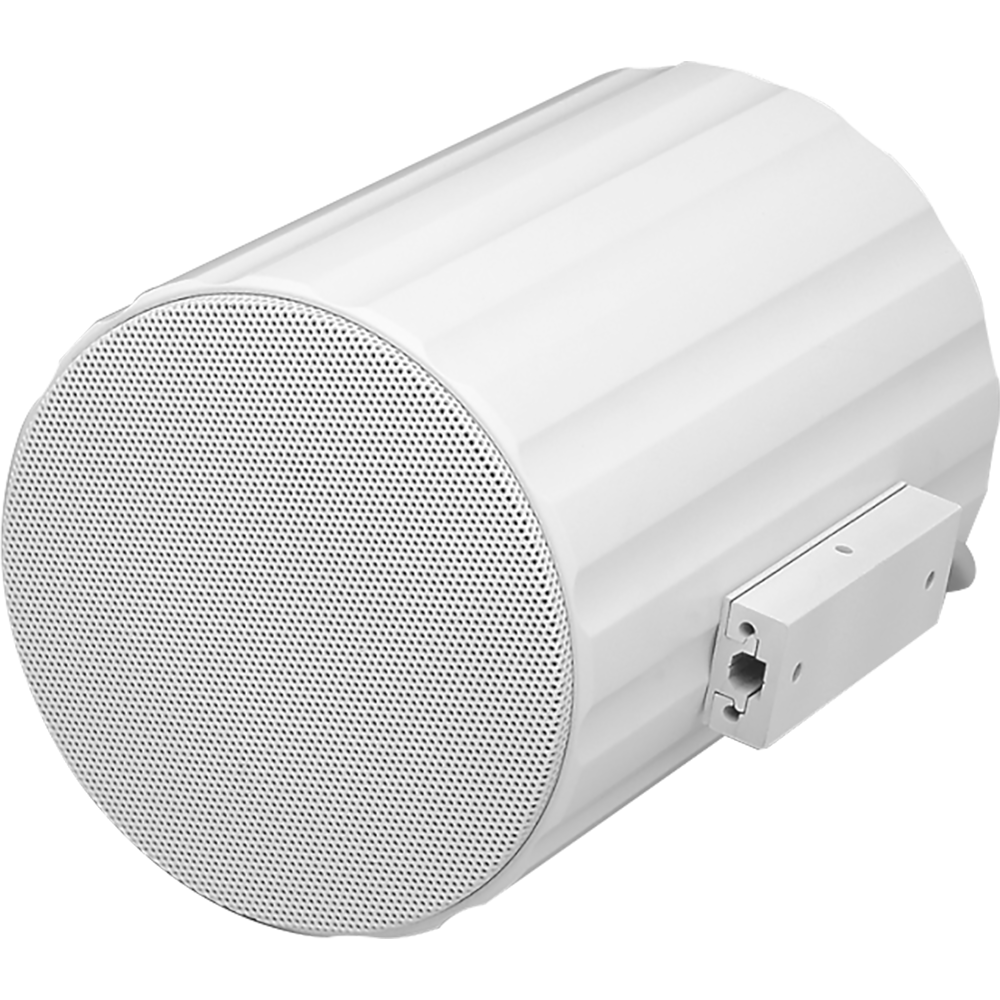

The CELL10BDT and CELL20BDT from Penton Audio are rugged bidirectional sound projectors having two 5-1/4″ full-range twin-cone speakers, one at either end of the rugged extruded aluminum housing. These models offer long-term reliability and even coverage for distributed audio, including transformer and stainless steel hardware.
Both use twin-cones for good sound dispersion. The CELL20BDT uses coated paper cones treated to withstand moisture, whereas the CELL10BDT cones are traditional paper for indoor applications.
Visually identical, they are white and equipped with stainless steel hardware. Both have matching aluminum grilles and slide-on mounting brackets. Units may be refinished with epoxy paint.
Features
CAD10T / CAD20T Features
- Frequency Response Tailored for Music or Speech
- Weather-Sealed ABS Housing with Molded-in UV Inhibitor
- Polypropylene Twin-Cone for Excellent Dispersion
- Stainless Steel Hardware
CELL10T / CELL20T Features
- Frequency Response Tailored for Music or Speech
- Sealed, Rugged Extruded Aluminum Housing
- Twin-Cone Speaker for Excellent Dispersion
- Stainless Steel Hardware
CELL10BDT / CELL20BDT Features
- Frequency Response Tailored for Music or Speech
- Rugged, Sealed, Extruded-Aluminum Housing
- Two 5″ Twin-cone Speakers for Excellent Dispersion
- Hidden Set-screw Mounting
Specifications
CAD10T / CAD20T Specifications
| CONE SPEAKER SIZE: | 5-1/4″ (134 mm) |
| FREQUENCY RESPONSE: | CAD20T: 160-20,000 Hz +/- 6 dB CAD10T: 180-20,000 Hz +/- 6 dB |
| LOW FREQUENCY -3dB DOWN POINT: | CAD20T: 165 Hz CAD10T: 190 Hz |
| POWER HANDLING | CAD20T: 28 Watts CAD10T: 15 Watts |
| SPL @ 1w 1m: | CAD20T: 92 dB CAD10T: 93 dB |
| SPL @ Full Power, 1m: | CAD20T: 105 dB CAD10T: 103 dB |
| Dispersion @ 2 kHz (6dB Down): | 110 degrees |
| Directivity Q Factor @ 2 kHz: | 5.5 |
| Cone Design: | Twin Cone |
| Cone Material | Polypropylene |
| Magnet Weight: | CAD20T: 10 oz CAD10T: 5.34 oz |
| CONNECTION: | CAD20T-B: Terminal Block CAD20T: Via Wire Nuts or Terminals CAD10T: Via Wire Nuts or Terminals |
| TRANSFORMER MAX INSERTION LOSS: | 0.6 dB |
| 70.7-VOLT TRANSFORMER TAPS (WATTS) | CAD20T: Red 20 Blue 10 Orange 5 Yellow 2.5 Black Common CAD10T: |
| 70.7-VOLT TRANSFORMER IMPEDANCE | CAD20T: Red 250 Blue 500 Orange 1 K Yellow 2 K CAD10T: |
| SUPPLIED MOUNTING ACCESSORIES: | Stainless Steel Bracket Bolts |
| HOUSING MATERIAL: | Molded ABS with UV Inhibitors |
| MOUNTING: | Non-reflective White “U” Bracket |
| APPROVALS: | CE |
| FINISH: | CAD20T: Non-reflective White CAD20T-B: Non-reflective Black CAD10T: Non-reflective White |
| Dimensions, Inch (MM) W/O Bracket: | 5.52 x 8.62 (w/gland nut) (138 x 219) |
| Net Weight LBS(KGS): | CAD20T: 4.18 (1.90) CAD10T: 3.42 (1.55) |
CELL10T / CELL20T Specifications
| Cone Speaker Size: | 5-1/4″ (134 mm) |
| Frequency Response: | CELL20T: 160-18,000 Hz +/- 5 dB CELL10T: 180-20,000 Hz +/- 6 dB |
| -3dB Down Point: | CELL20T: 165 Hz CELL10T: 190 Hz |
| Power Handling: | CELL20T: 28 Watts CELL10T: 15 Watts |
| SPL @ 1w 1m: | CELL20T: 92 dB CELL10T: 93 dB |
| SPL @ Full Power, 1m: | CELL20T: 105 dB CELL10T: 105 dB |
| Dispersion @ 2 kHz (6dB Down): | 110 degrees |
| Directivity Q Factor @ 2 kHz: | 5.5 |
| Cone Design: | Twin Cone |
| Cone Material | CELL20T: Polypropylene CELL10T: Paper Cone |
| Magnet Weight: | CELL20T: 10 oz CELL10T: 5.34 oz |
| Transformer Max Insertion Loss: | 0.6 dB |
| Transformer Tap Change: | Via Color-coded Wire |
| 70.7-Volt Transformat Taps (Watts): | CELL20T: Red 20 Blue 10 Orange 5 Yellow 2.5 Black Common CELL10T: |
| 70.7-Volt Transformer Impedance: | CELL20T: Red 250 Blue 500 Orange 1 K Yellow 2 K CELL10T: |
| Approvals: | CE |
| Housing Material: | Extruded Aluminum |
| Finish: | Baked-on White Epoxy Paint |
| Mounting: | Non-reflective White “U” Bracket |
| Supplied Mounting Accessories: | Stainless Steel Bracket Bolts |
| Dimensions, Inch (MM) W/O Bracket: | 5.91 x 8.27 (w/gland nut) (150 x 210) |
| Net Weight LBS(KGS): | CELL20T: 5.29 (2.40) CELL10T: 4.41 (2.00) |
CELL10BDT / CELL20BDT Specifications
| CONE SPEAKERS & SIZE: | Two 5-1/4″ (134 mm) |
| FREQUENCY RESPONSE: | CELL10BDT: 170-19,000 Hz +/- 6 dB CELL20BDT: 190-17,000 Hz +/- 6 dB |
| POWER HANDLING: | CELL10BDT: 30 Watts CELL20BDT: 56 Watts |
| SPL @ 1W 1M | CELL10BDT: 95 dB CELL20BDT: 94 dB |
| SPL @ FULL POWER, 1M | CELL10BDT: 105 dB CELL20BDT: 107 dB |
| DISPERSION @ 2 KHZ (6 dB DOWN): | 110 degrees x 110 degrees bi-directional |
| DIRECTIVITY Q FACTOR @2 kHz: | 2.2 |
| CONE DESIGN: | Twin Cone |
| CONE MATERIAL: | CELL10BDT: Paper Cone CELL20BDT: Coated Paper |
| MAGNET WEIGHT: | CELL10BDT: 5.34 oz CELL20BDT: 10 oz |
| TRANSFORMER MAX INSERTION LOSS: | 0.7 dB |
| TRANSFORMER TAP CHANGE: | Via Color Coded Wire |
| CONNECTION: | Via Wire Nuts |
| TRANSFORMER: | CELL10BDT: 70.7/25 volts CELL20BDT: 70.7/25 volts |
| 70.7-VOLT TRANSFORMER TAPS: | CELL10BDT: 20, 10, 5, 2.5 CELL20BDT: 40, 20, 10, 5 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | CELL10BDT: 250, 500, 1K, 2K CELL20BDT: 125, 250, 500, 1K |
| 25-VOLT TRANSFORMER TAPS: | CELL10BDT: 20, 10, 5, 2.5 CELL20BDT: 40, 20, 10, 5 |
| 25-VOLT TRANSFORMER IMPEDANCE: | CELL10BDT: 31.25, 62.5, 125, 250 CELL20BDT: 15.6, 31.25, 62.5, 125 |
| SUPPLIED MOUNTING ACCESSORIES: | Stainless Steel Bracket Bolts |
| HOUSING MATERIAL: | Extruded Aluminum |
| MOUNTING: | Slide-on Bracket |
| FINISH: | Baked-on White Epoxy Paint |
| APPROVALS: | CE |
| DIMENSIONS, INCH (MM): | 7.72 x 5.51 (196 x 140) |
| BRACKET MOUNTING DIMENSIONS ON CENTER, INCH (MM): | 2.362 (60) |
| NET WEIGHT LBS (KGS) | CELL10BDT: 5.29 (2.40) CELL20BDT: 6.83 (3.10) |
Applications
CAD10T / CAD20T Applications
Versatile in application, the CAD series may be used for surface applications indoors or out and for value-engineered projects without sacrificing audio quality. The durability of the molded ABS housing is well suited for moist outdoor environments, but its European styling makes it a great choice for an indoor track lighting decor.
Mainly considered for music installations, the CAD Series is equally effective for voice reproduction in commercial, industrial, and institutional settings.
Applications include mounting in atriums, malls, banks, upscale stores and outdoor restaurants. Additionally, they can be used for traditional paging situations where the customer demands quality background music.
CELL10T / CELL20T Applications
The fashionable European-styled CELL Series projects a strong precision-like appearance, while having a frequency response ideal for background music or voice communication.
The CELL10T is designed to be mounted indoors in malls, restaurants, sporting venues, parking facilities, transportation terminals, food centers and hotel/motel applications.
The treated-paper twin cones of the CELL20T are ideal for outdoor situations to best take advantage of its sealed housing and stainless steel hardware. It handily reproduces music or traditional paging in commercial facilities like shopping centers, country clubs, park districts restaurants as well as in industrial, institutional and military installations.
CELL10BDT / CELL20BDT Applications
Designed for use in the London Underground corridors these sturdy, but remarkably good-looking bi-directional speakers have a high output level with an exceptional intelligibility factor.
The CELL20BDT is ideally suited for outdoor installations such as transportation facilities, parking garages and military complexes. The CELL10BDT is designed for indoor applications such as schools, hotel/motels, office hallways and other traditional long passageways.
The slide-on bracket may be mounted onto a single-gang, e.o. box cover, or directly onto a wall. Unit then slides on and is secured with a recessed set hex screw.
