Speaker Systems
PBC - 6" Surface-mount Speaker Packages
Description
Features
Specifications
Applications
Description
PBC6T(K) / PBC6XT(K) Description

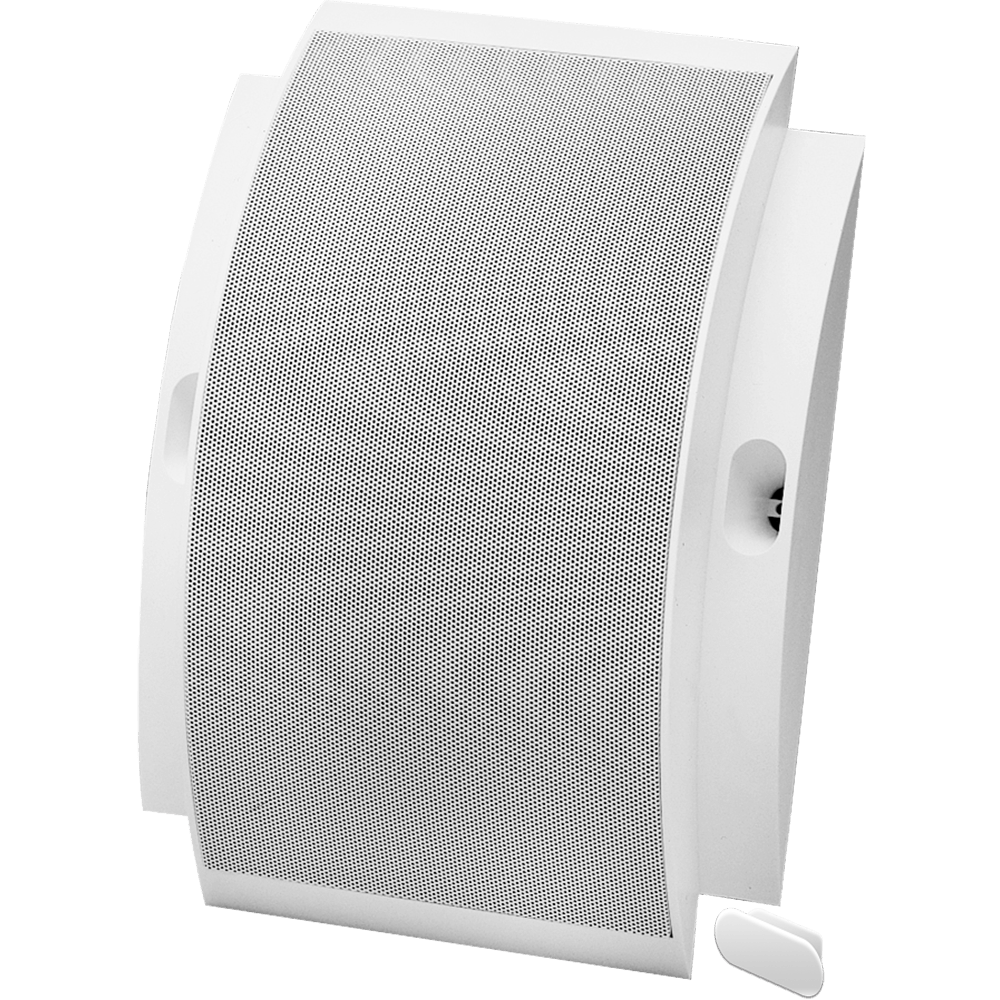

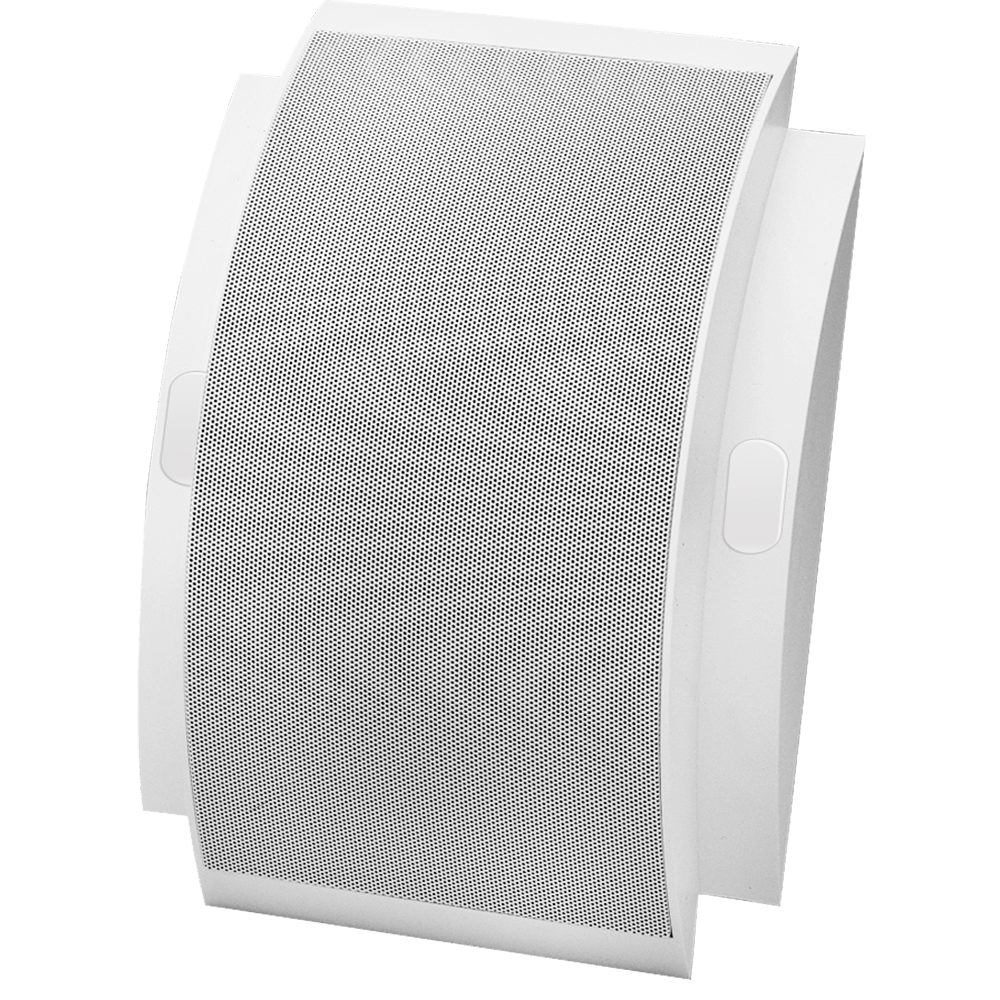

Classy is a great word to describe the Penton Audio PBC Series surface mount speaker packages. Not only decorative, but sturdy, the curved ABS housings are equipped with dual-voltage (70.7/25) transformers and 6″ cone loudspeakers which exhibit wider coverage angles than typical 8″ cones.
The PBC6T(K) uses a 10-watt, twincone loudspeaker with 5-ounce magnet, while the 15-watt PBC6XT(K) uses a coaxial loudspeaker with 10-ounce ceramic magnet. Tweeter has a 1″ Mylar dome with 1/2″ moving coil and neodymium magnet.
The white ABS molded cabinets are loaded with customer-centric features including UV inhibitors, optional volume control, bass port, mounting hole covers, transformer tap selection via movable spade lugs and connection via a terminal block.
Features
PBC6T(K) / PBC6XT(K) Features
- Elegant Cabinet Styling Protected by Steel Mesh
- Choose Coaxial or Twin Cone

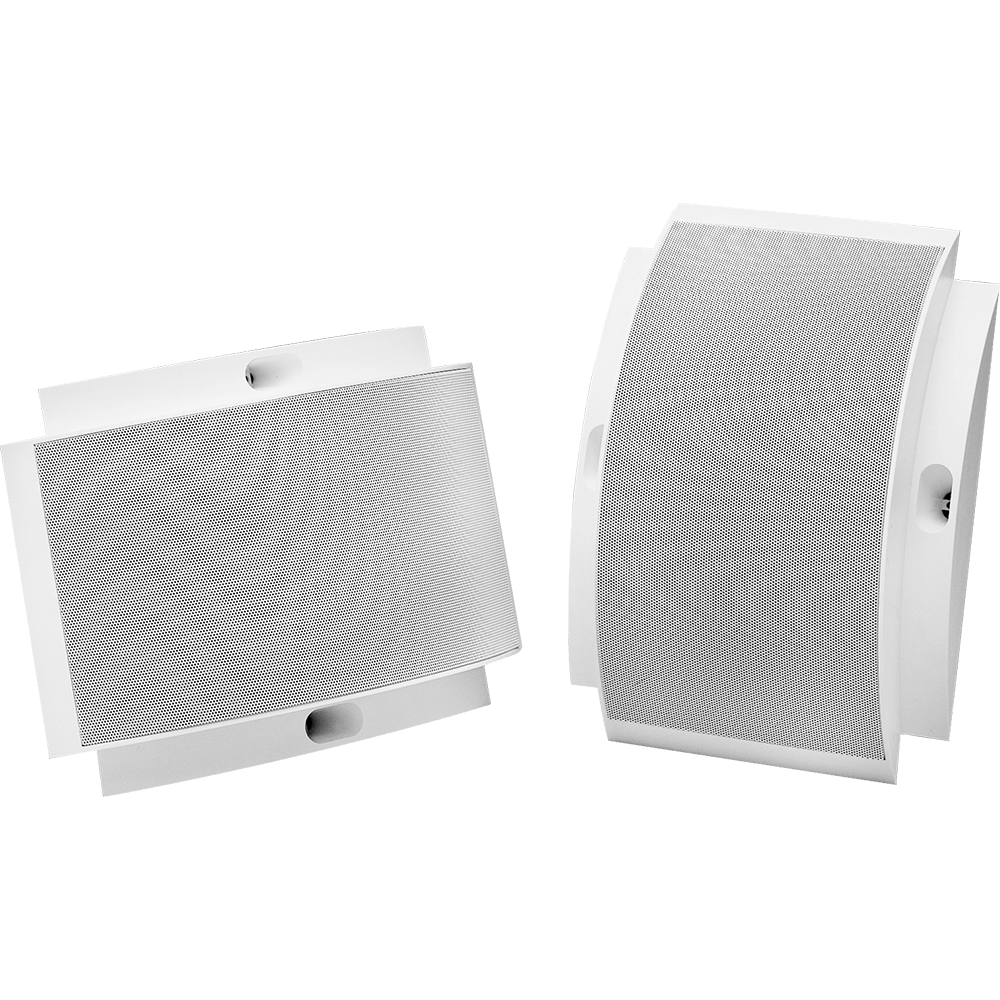

- Horizontal or Vertical Mount
- Ported to Enhance Bass
- Horizontal or Vertical Mount
- Dual 70.7/25-volt Transformer with Spade-lug Taps
Specifications
PBC6T(K) / PBC6XT(K) Specifications
| Cone speaker size: | 6-1/2″ (152 mm) |
| Speaker type: | PBC6T(K): Twin Cone PBC6XT(K): Coaxial with 1″ Tweeter |
| Frequency response: | PBC6T(K): 110 – 20,000 Hz +/- 6dB PBC6XT(K): 90 – 20,000 Hz +/- 6dB |
| Power handling (Raw Driver): | PBC6T(K): 10 watts PBC6XT(K): 15 watts |
| SPL @ 1w 1m: | PBC6T(K): 94 dB PBC6XT(K): 91 dB |
| PBC6XT(K) Tweeter Type: | 1″ Mylar Dome with 1/2″ Moving Coil and Neodymium Magnet |
| Dispersion @ 2 kHz (6 dB Down): | PBC6T(K): 115 degrees PBC6XT(K): 120 degrees |
| Directivity Q Factor @ 2 kHz: | PBC6T(K): 7.1 PBC6XT(K): 5.1 |
| Cone Material: | PBC6T(K): Paper PBC6XT(K): Polypropylene with Rubber Surround |
| Magnet Weight: | PBC6T(K): 5.34 oz PBC6XT(K): 10.0 oz |
| Transformer Tap Change: | Movable Spade Lug |
| Connection: | Terminal Block |
| Transformer Max Insertion Loss: | PBC6T(K): 1.5 dB PBC6XT(K): 0.8 dB |
| 70.7-Volt Transformer Taps (Watts): | PBC6T(K): 5, 2, 1, 0.5, 0.25 PBC6XT(K): 8, 5, 2, 1, 0.5 |
| 70.7-Volt Transformer Impedance:: | PBC6T(K): 1K, 2.5K, 5K, 10K, 20K PBC6XT(K): 625, 1.25K, 2.5K, 5K, 10K |
| 25-Volt Transformer Taps (Watts): | PBC6T(K): 5, 2, 1, 0.625, 0.25 PBC6XT(K): 8, 4, 2, 1, 0.5 |
| 25-Volt Transformer Impedance: | PBC6T(K): 125, 312, 625, 1K, 2.5K PBC6XT(K): 78, 156, 312, 625, 1.25K |
| Approvals: | CE |
| Supplied Mounting Accessories: | 2 ea. Caps for Recessed Holes; Volume-control Knob |
| Baffle Material: | Molded ABS Housing with UV Inhibitor and Steel Mesh Grille |
| Finish: | Non-reflective White |
| Dimensions, Inch (MM): | 13 x 9.45 x 3.54 (330 x 240 x 90) |
| Net Weight LBS (KGS): | PBC6T(K): 1.56 (1.16) PBC6XT(K): 3.00 (1.36) |
Applications
PBC6T(K) / PBC6XT(K) Applications
Offering the first serious alternative to conventional wooden wall baffles, the PBC Series can be mounted in classrooms, malls, atriums, church fellowship halls, meeting rooms and other venues where recessed speaker systems are not practical.
The PBC cabinet mounts easily with provided hole cover caps and customer supplied hardware. In the vertical orientation mounting uses the keyhole bracket. Horizontal attachment is made using the two front mounting holes. For audio connection, mount over electrical box or by allowing cable entry through either of 2 provided cutouts.
