Amplifiers
BPA Dual Channel Amplifiers
Description
Features
Specifications
Description
BPA2120 / BPA2240 / BPA2480 Description
The BPA Amplifiers are designed for perfect integration with the DSP Processors and offer a complete multi-channel solution with an optimum of security features. The BPA range is perfect for background music and PA applications in a variety of environments.
The BPA amplifiers were specifically designed for high dependability and are equipped with a host of fault warning abilities and safety features for maximum operational safety. Each channel is being powered by its own independent power supply so that in case of failure, the second channel is still operational. Each channel also accepts a 48 Volt back up circuit. Thermal protection via fuses is further enhanced by additional electronic overload protection keeping the system safe from all potential hazards. A fan provides forced cooling for the final power shelves and internal parts of the amplifiers. It starts up automatically when the heat shunt reaches a certain temperature threshold, and stops when the temperature returns to normal values.

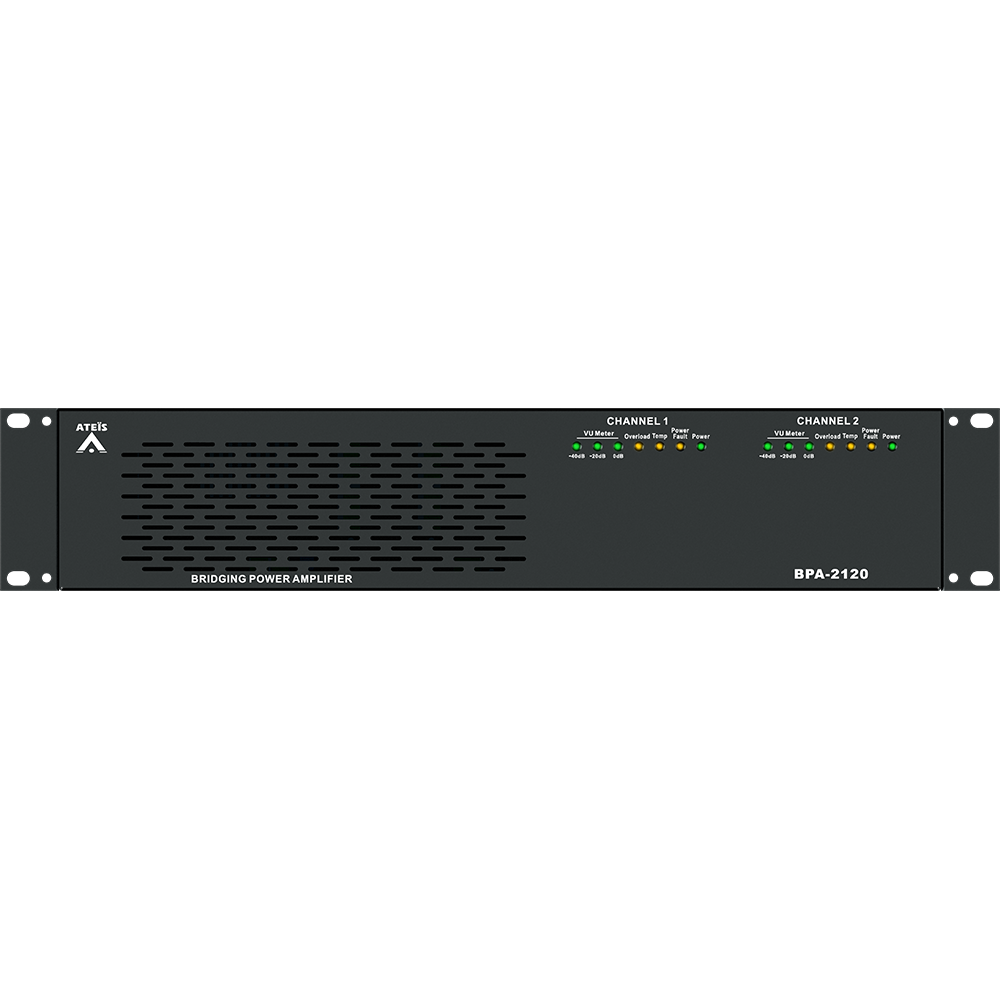

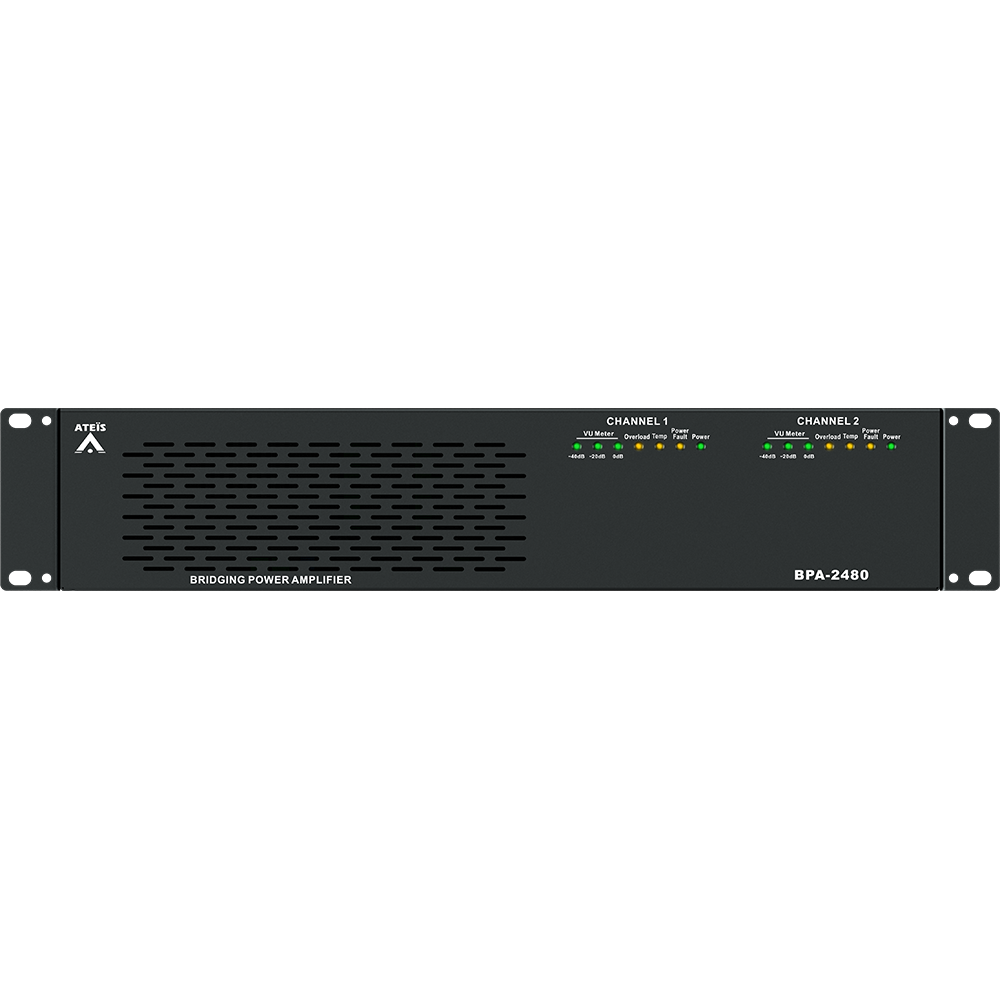

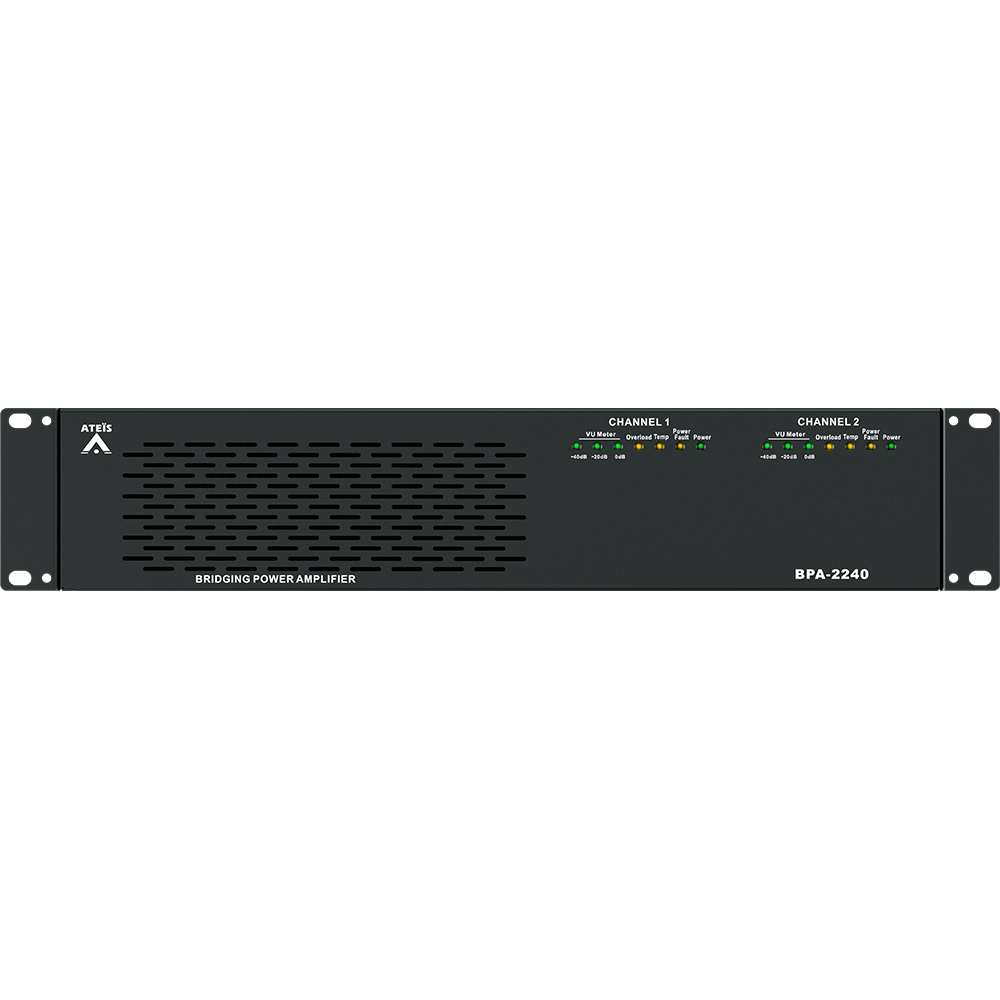

A surveillance circuit is continuously monitoring the temperature and the presence of AC and DC power for both amplifiers. In case of fault, the front panel overload LEDs will switch on and the fault relay will be activated. Four LEDs display the status of each amplifier; AC and DC power supply, Line overload, and temperature overload. Further, a three-LED-VU meter indicates the presence of signal and level of audio.

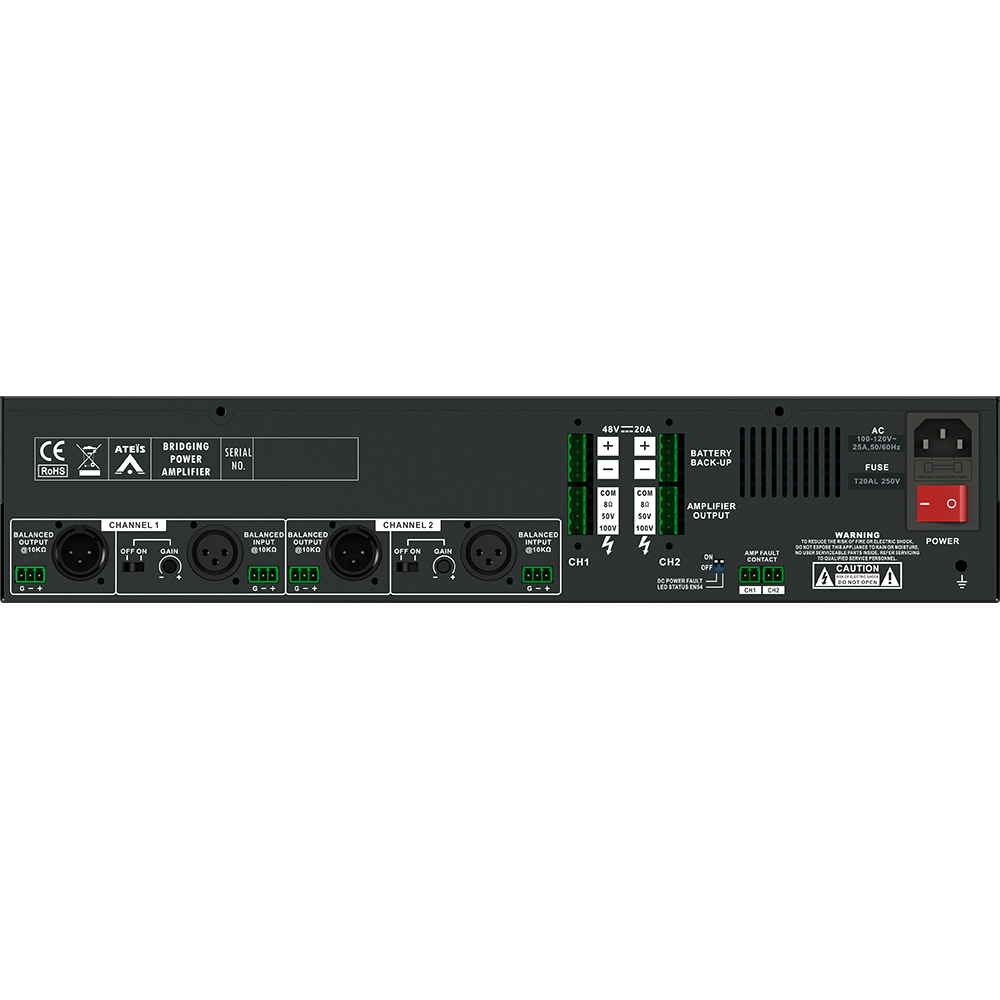

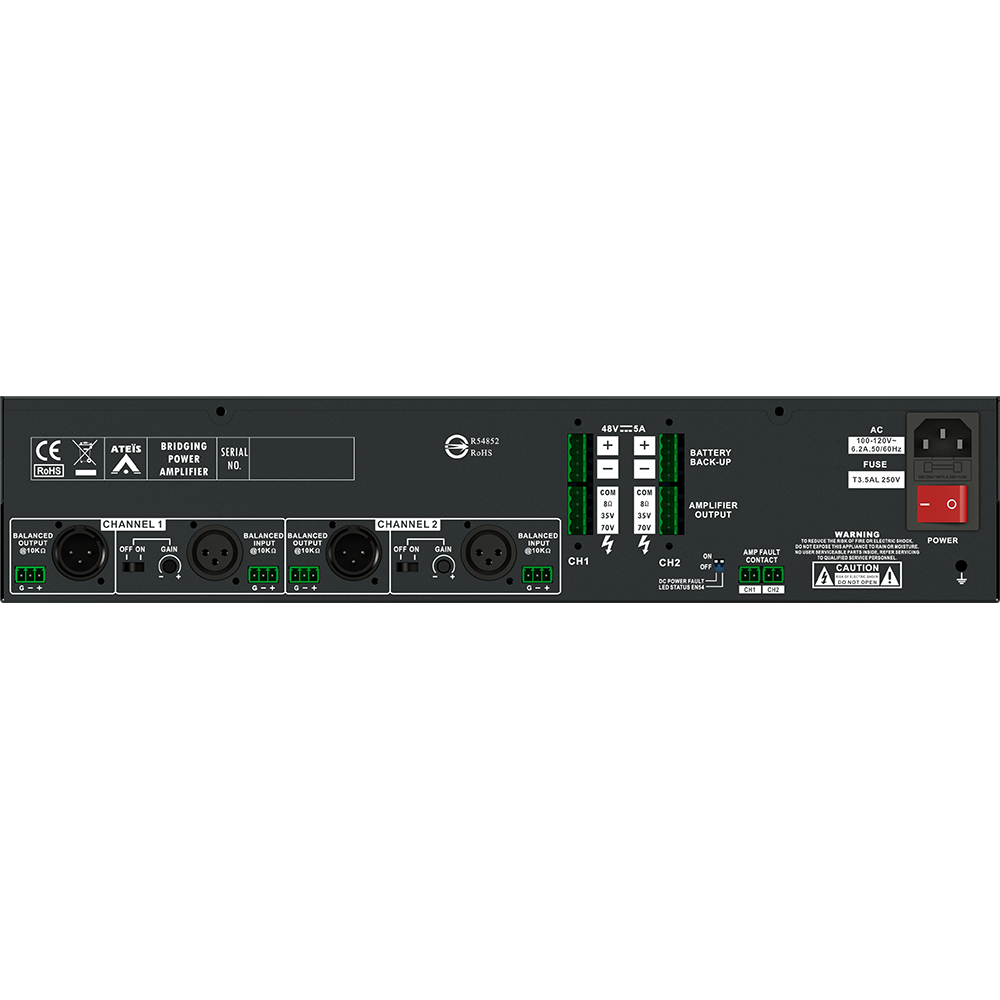

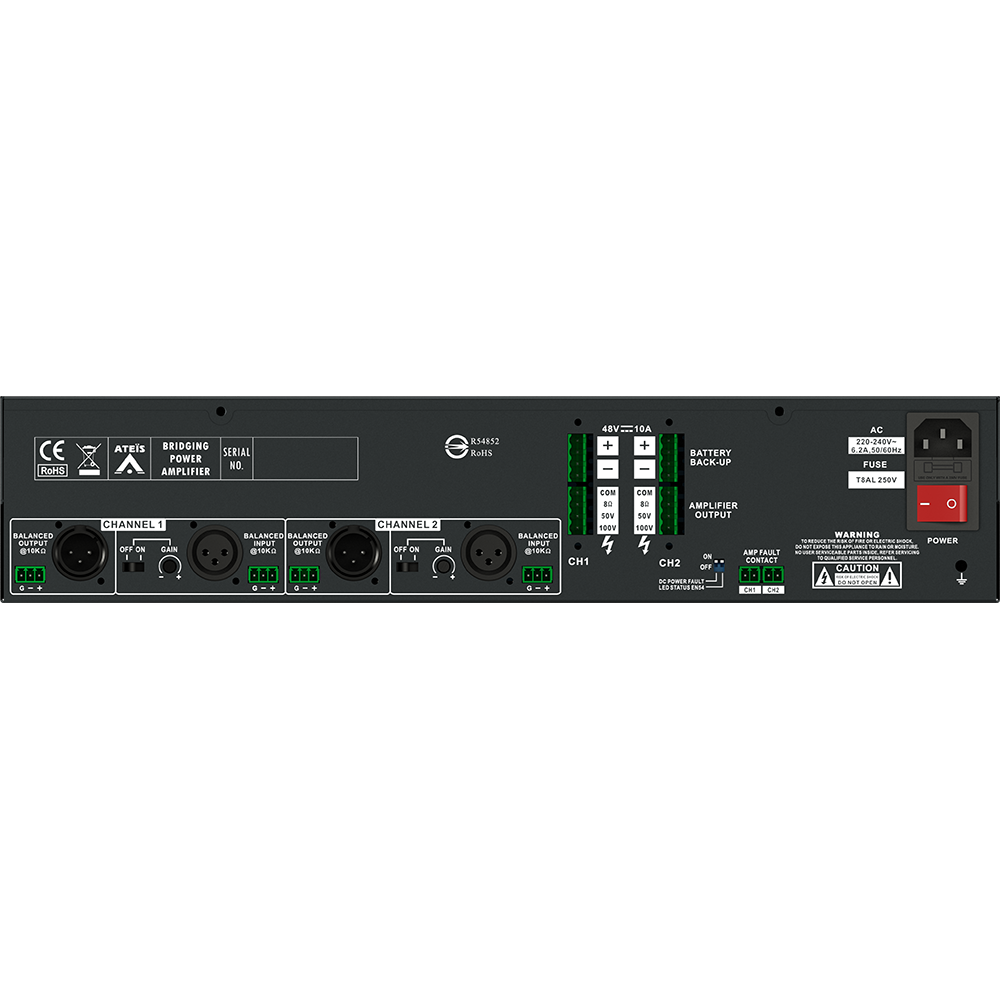

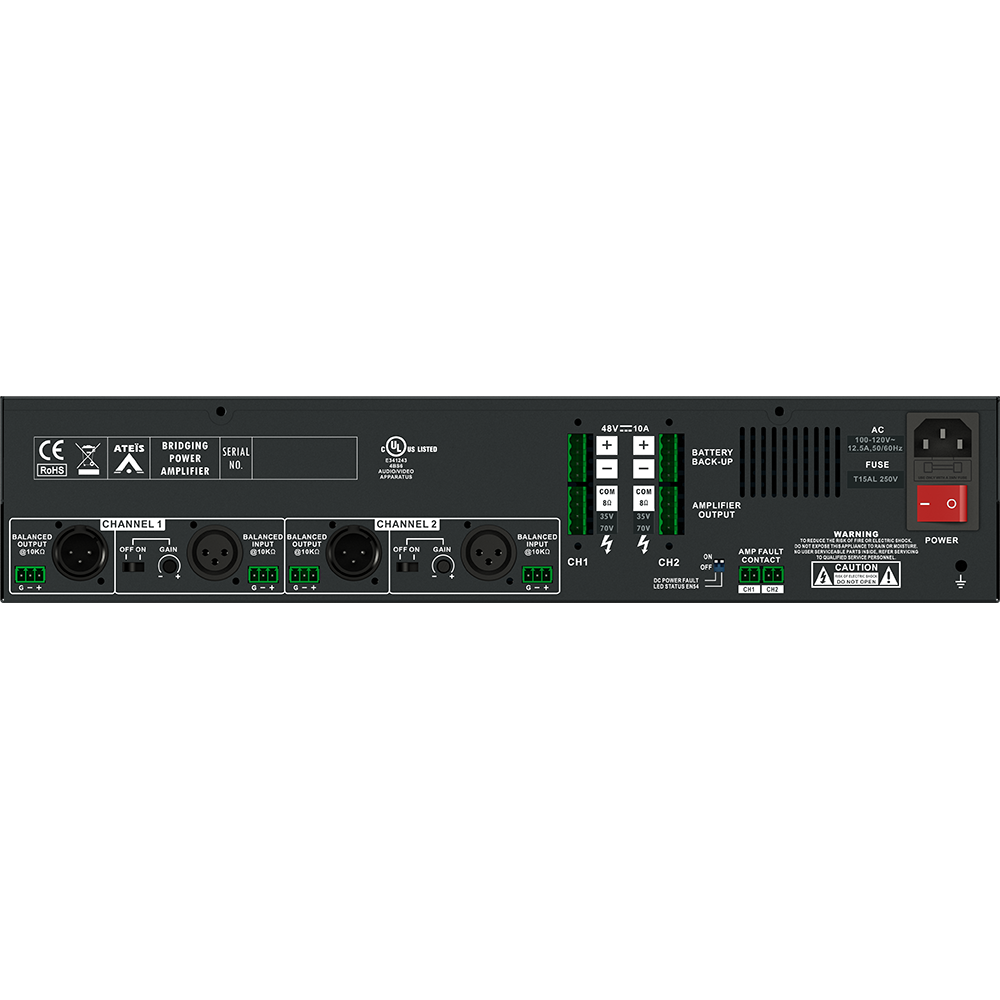

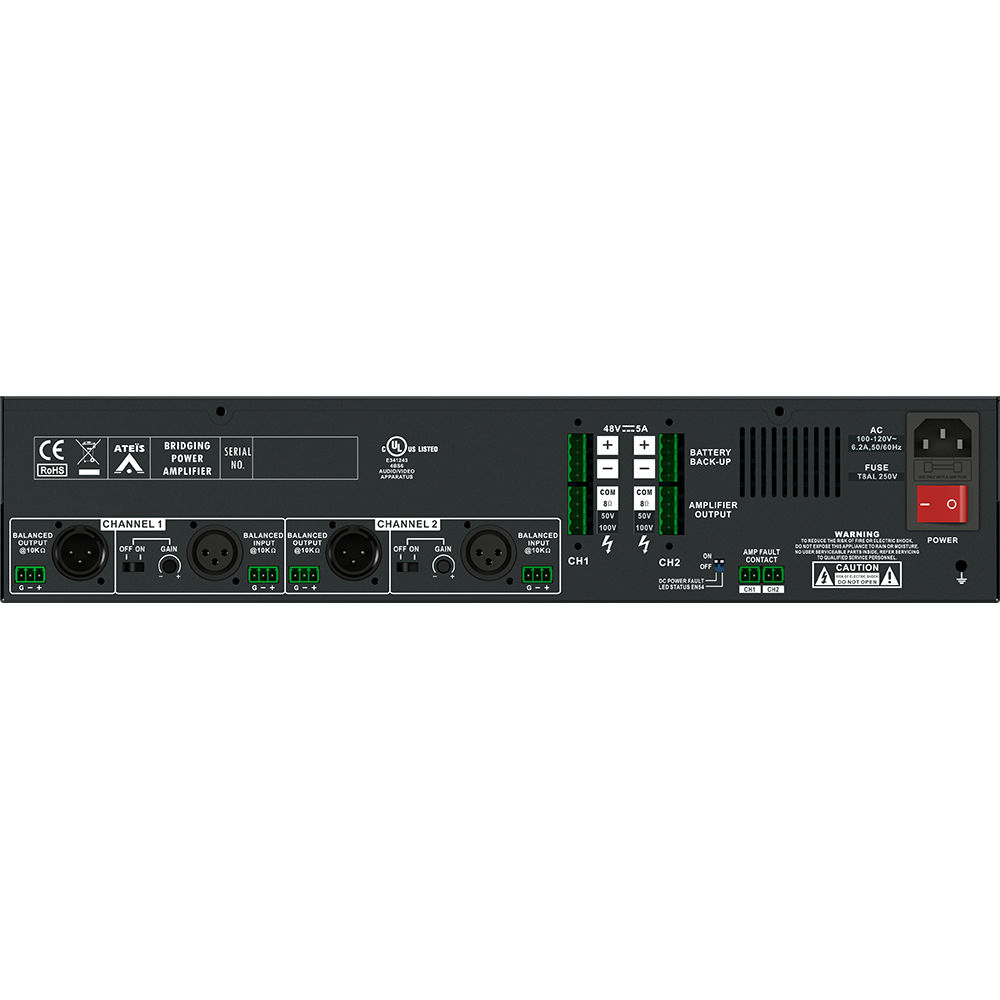

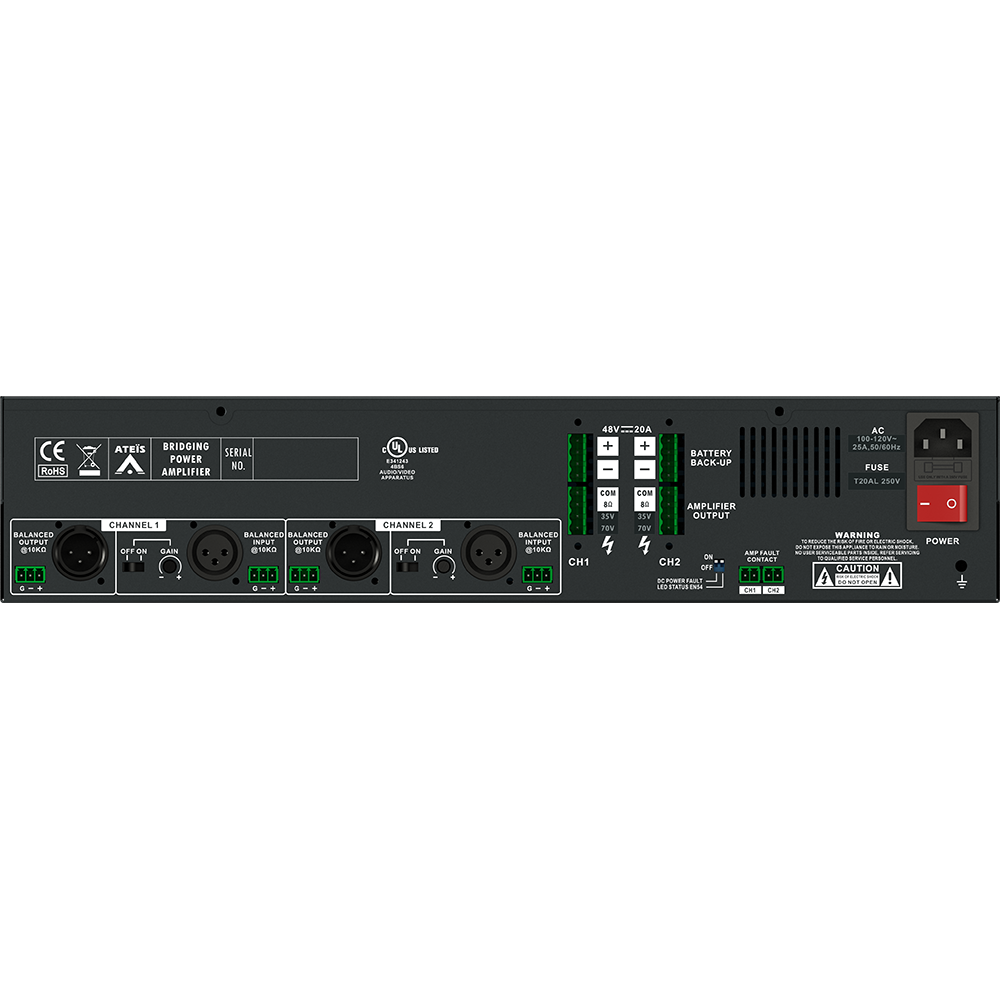

To avoid handling errors, the volume output is set using the potentiometer located at the rear panel of the amplifiers.
Features
SPA2060 / SPA2120 / SPA2240 Features
- 2 x 120 W and 2 x 240 W, 2 x 480 W
- Balanced 0 db inputs
- 2 70 V or 35V outputs
- Thermostatic ventilation
- Power supply internal surveillance
- 120 VAC and 48 VDC power supply
- “Amplifier status” contact output
- Connections on detachable screw-on terminal boards
Specifications
SPA2060 / SPA2120 / SPA2240 Specifications
| Power Output: | BPA2120: 2 Channel @ 120 Watt BPA2240: 2 Channel @ 240 Watt BPA2480: 2 Channel @ 480 Watt |
| Distortion: | 1% |
| Frequency Response: | 40Hz – 20kHz |
| Signal to Noise Ratio: | > 90 dB |
| Input & Output Connections: | XLR and Terminal Block |
| Mounts: | Rack Mounts Provided |
| Housing Material: | Cold Rolled Steel |
| Finish: | Grey |
| Thermal Protection: | Fuses and electronic thermal protection |
| Inputs/Outputs: | Power output: 70 V or 35 V Main line input: 770 mV Input impedance: 20 KOhms |
| Dimensions, Inch (MM): | BPA2120: 19″W x 3.5″H x 12″D BPA2240: 19″W x 3.5″H x 12″D BPA2480: 19″W x 3.5″H x 16.5″D |
| Net Weight LBS (KGS): | BPA2120: 30 lbs BPA2240: 35 lbs BPA2480: 45 lbs |
| Power Supply: | Mains power supply: 120V +/- 10% 50/60Hz Continuous external power supply: 21-28V |
