Ceiling Speakers
High Fidelity Ceiling Speaker
Description
Features
Specifications
Applications
Description

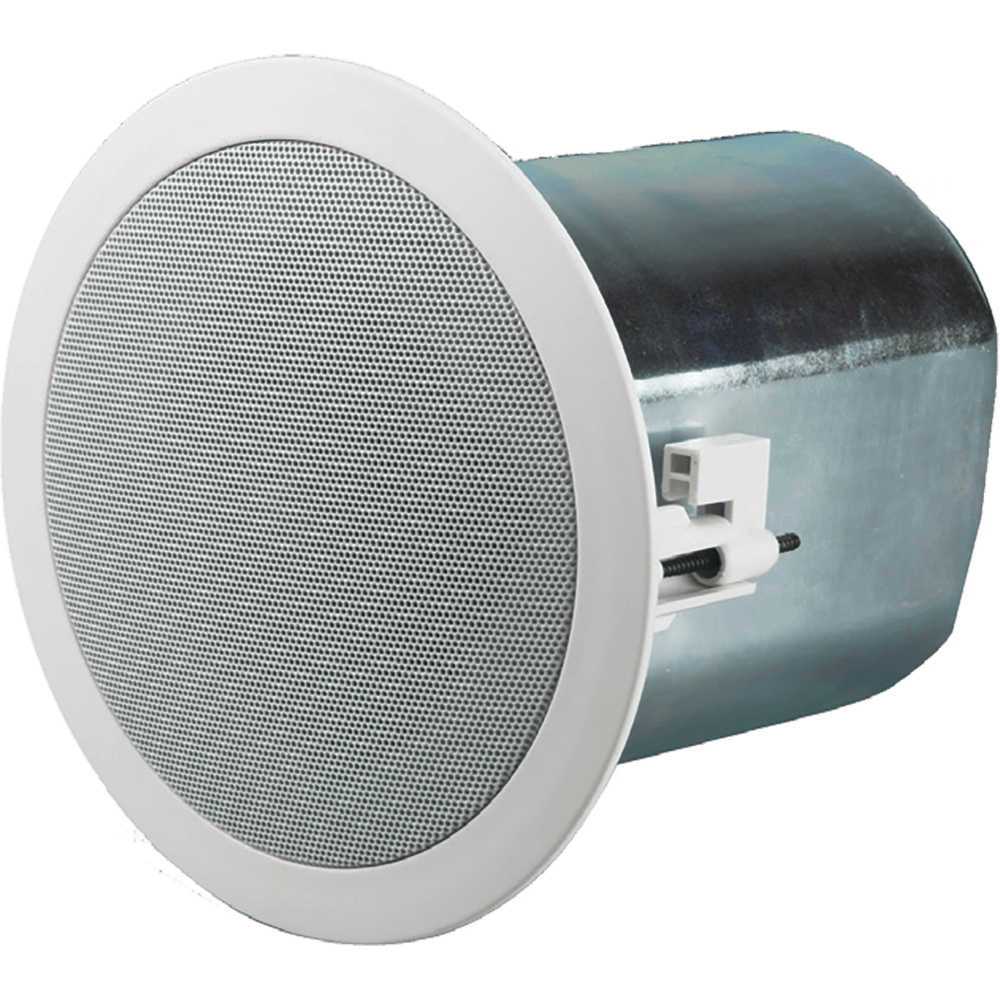

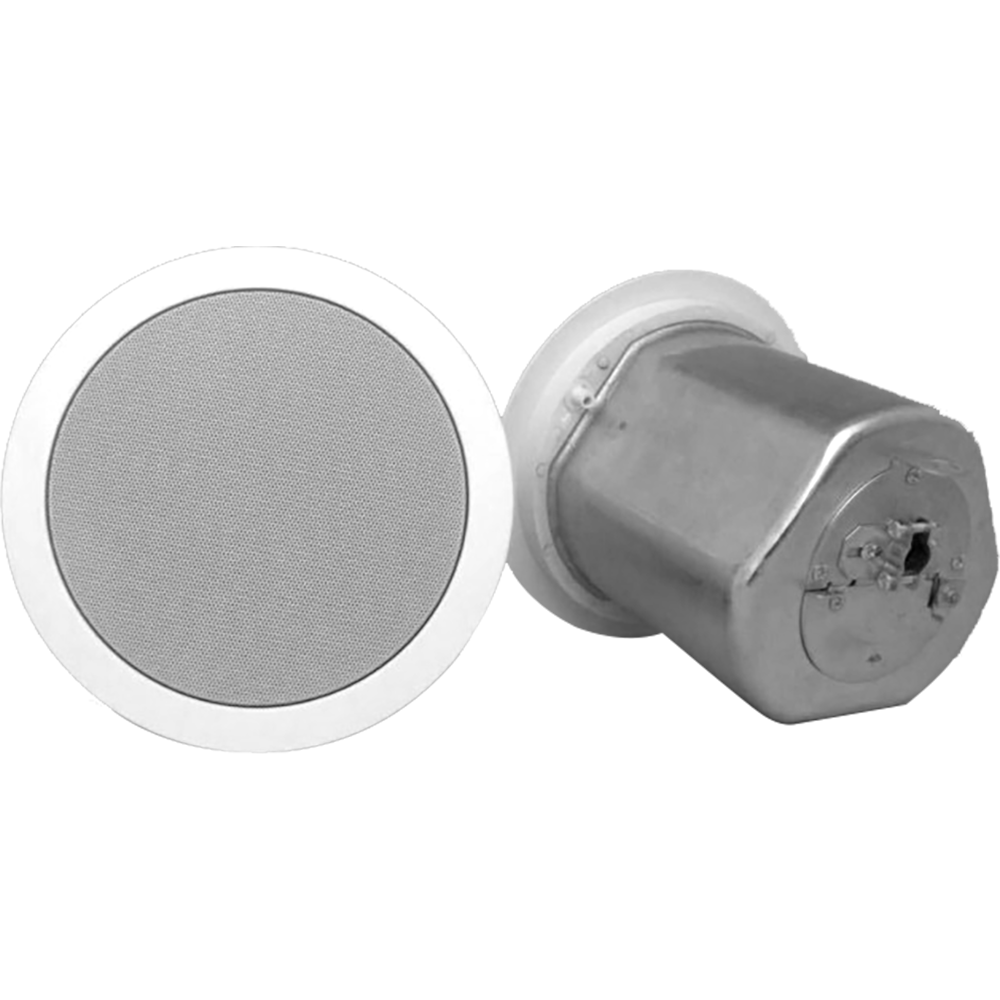

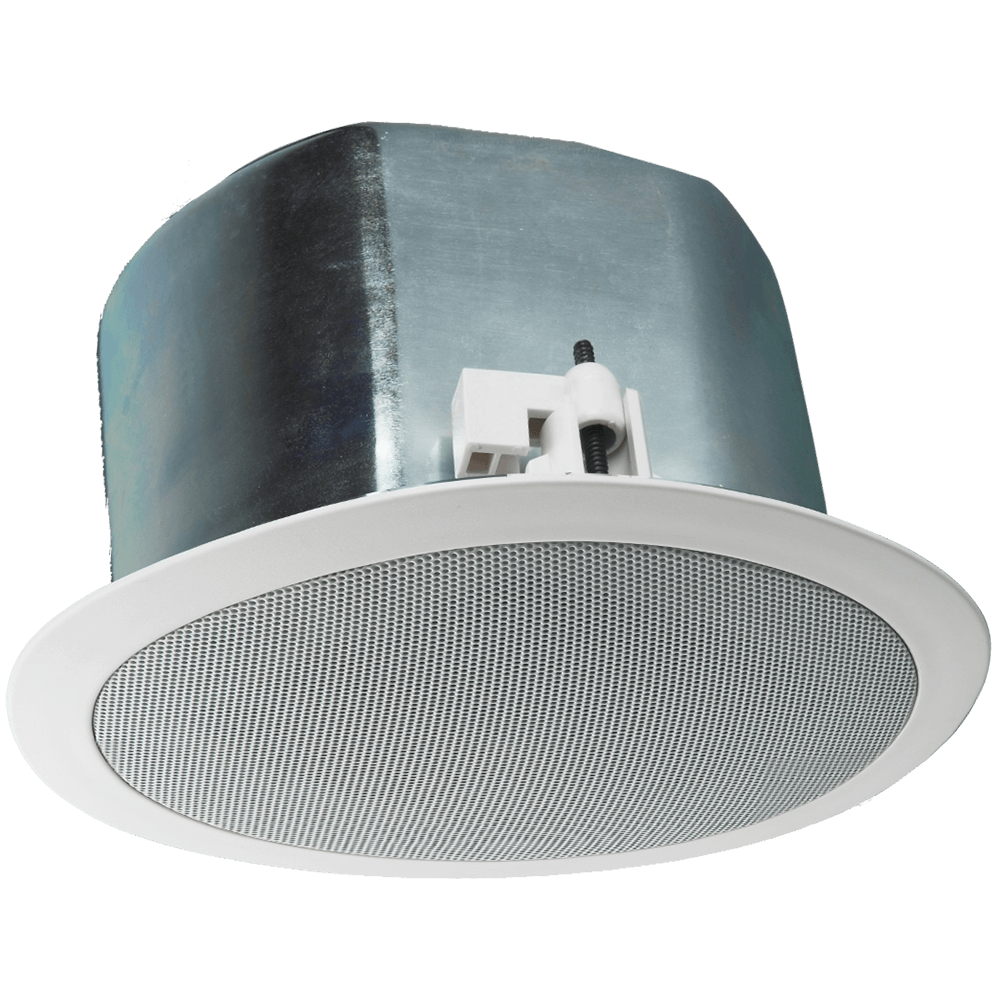

CCS4T Description
The Penton Audio USA CCS Series was designed for high-end audio installation where full impact bass output along with high sound pressure levels is imperative. The speaker component is situated in a sealed metal back-box with a UL Plenum compliant wire connection on the back of the back-box. Installer friendly phoenix style terminal blocks quickly and easily connect to the speaker and also offer a pass-through connection for continuing the line to other speakers in the system.
The unit uses a 4″ long throw low frequency driver along with a 1″ tweeter mounted on axis for single point sound output. A bass port on the front of the baffle serves to further extend the low frequencies of this speaker. Transformer selection is completed via a screwdriver adjustable dial on the front of the baffle easily accessible by removing the grille. With a maximum 30 Watts transformer tap selection this speaker offers unique sonic qualities along with a substantial sound pressure level.

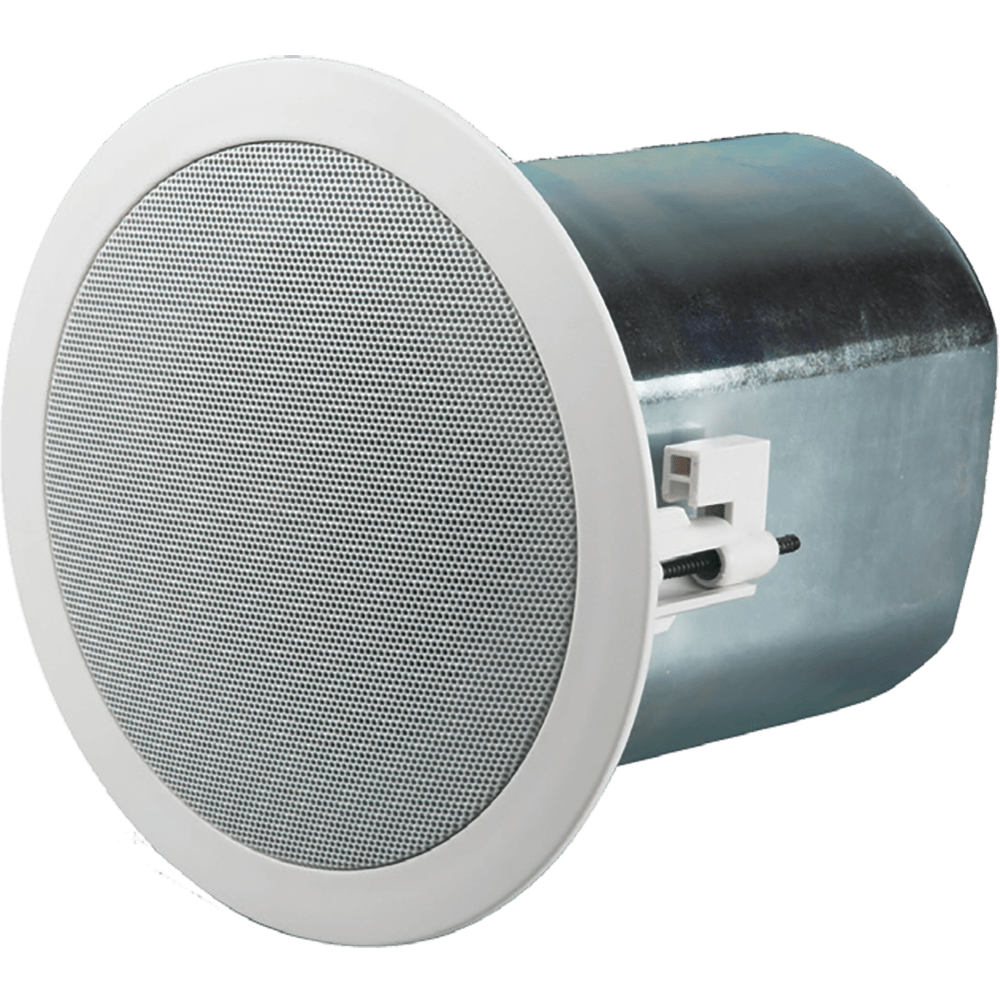

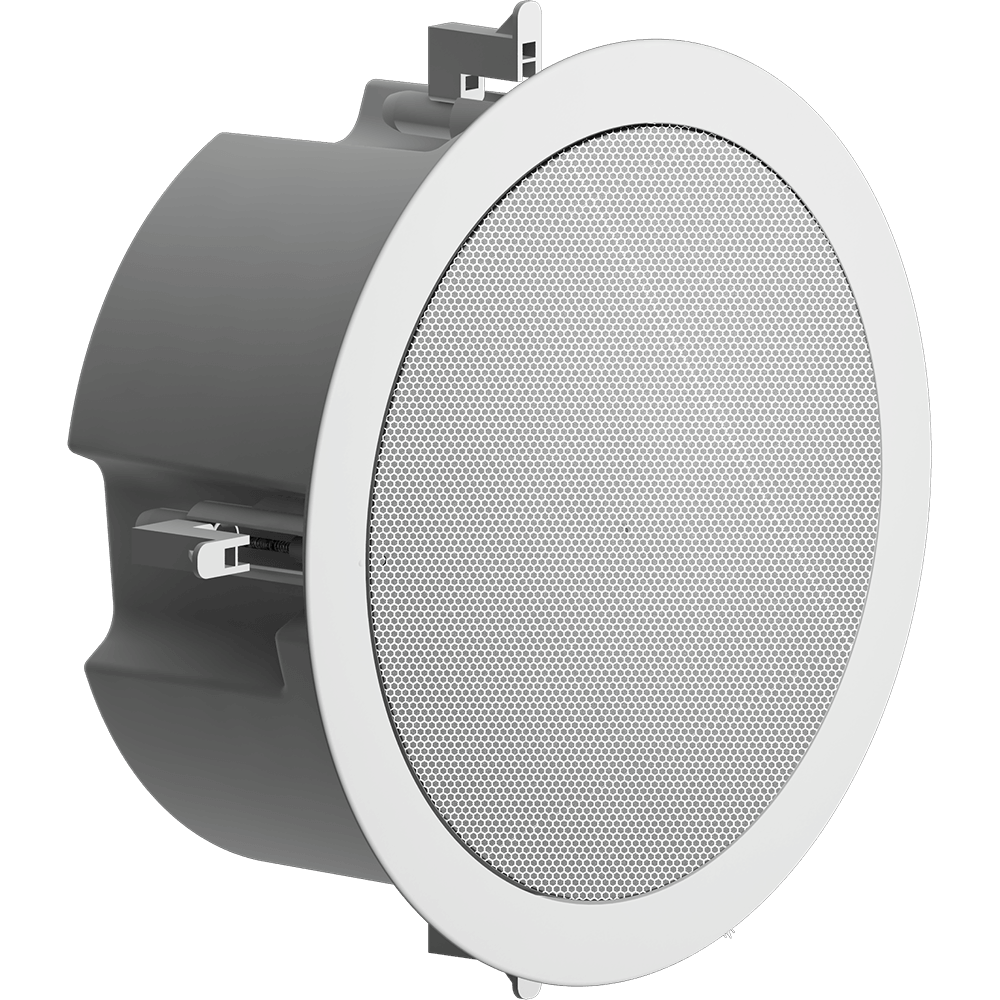

CCS6T Description
The Penton Audio USA CCS Series was designed for high-end audio installation where full impact bass output along with high sound pressure levels is imperative. The speaker component is situated in a sealed metal back-box with a UL Plenum compliant wire connection on the back of the back-box. Installer friendly phoenix style terminal blocks quickly and easily connect to the speaker and also offer a pass-through connection for continuing the line to other speakers in the system.
The unit uses a 6″ long throw low frequency driver along with a 1″ tweeter mounted on axis for single point sound output. A bass port on the front of the baffle serves to further extend the low frequencies of this speaker. Transformer selection is completed via a screwdriver adjustable dial on the front of the baffle easily accessible by removing the grille. With a maximum 60 Watts transformer tap selection this speaker offers unique sonic qualities along with a substantial sound pressure level.
Features
CCS4T / CCS6T Features
- Time tested metal grille with hardware free appearance
- Clamp-on mounting system for fast and easy installation
- Designed for maximum bass output even at low volume
- Sealed speaker/backbox assembly
- Dual 70.7/100V Xfrmr with dial wattage selection on front
- Phoenix terminal block connection
Specifications
CCS4T Specifications
| Cone speaker size: | 4″ |
| Frequency Response: | 85Hz – 20kHz +/- 5 dB |
| Power handling (raw driver) | 45 watts |
| SPL @ 1w 1m | 86 dB |
| Dispersion @ 4 kHz | 130 |
| Speaker design: | Coaxial |
| Tweeter Type: | 1″ titanium dome with 1/2″ moving coil and neodynium magnet |
| Cone Material (driver) | Polypropylene with rubber surround |
| Magnet Weight: | 40 oz |
| Transformer max insertion loss: | 0.6 dB |
| Transformer Tap Change: | Screwdriver adjustable dial |
| Connection: | Detachable Phoenix style terminal block |
| 70.7V Transformer Taps: | 30, 15, 7.5, 3.7 |
| 100 V Transformer Taps: | 30, 15, 7.5 |
| Mounting: | Quick connect Flip-Out and Tighten Connectors |
| Baffle Material: | High-Impact PVC |
| Finish: | White |
| Suggested Mounting Accessories: | BRG4 Tile Bridge |
| Dimensions: | Front: 7 1/2″ total, 6 1/4″ cutout, Depth Required: 7″ |
| Net Weight (lbs) | 5.5 lbs |
CCS6T Specifications
| Cone speaker size: | 6″ |
| Frequency Response: | 60Hz – 20kHz +/- 5 dB |
| Power handling (raw driver) | 90 watts |
| SPL @ 1w 1m | 89 dB |
| Dispersion @ 4 kHz | 130 |
| Speaker design: | Coaxial |
| Tweeter Type: | 1″ titanium dome with 1/2″ moving coil and neodynium magnet |
| Cone Material (driver) | Polypropylene with rubber surround |
| Magnet Weight: | 80 oz |
| Transformer max insertion loss: | 0.6 dB |
| Transformer Tap Change: | Screwdriver adjustable dial |
| Connection: | Detachable Phoenix style terminal block |
| 70.7V Transformer Taps: | 60, 30, 15, 7.5 |
| 100 V Transformer Taps: | 60, 30, 15 |
| Mounting: | Quick connect Flip-Out and Tighten Connectors |
| Baffle Material: | High-Impact PVC |
| Finish: | White |
| Suggested Mounting Accessories: | CBG06 Tile Bridge |
| Dimensions: | Front: 10 1/3″ total, 9″ cutout, Depth Required: 7″ |
| Net Weight (lbs) | 7.7 lbs |
Applications
CCS4T / CCS6T Applications
The CCS Series is an excellent choice for any type of background music application and a good choice for many foreground music applications as well. Upscale restaurants, sports clubs, hotels, malls, and any other location where high-quality audio is desired will find the CCS Series to be a very attractive choice. With its low profile it is also a great choice for boardrooms and other venues where high quality sound is imperative, but the visual aspects of the speaker are equally important.
