Ceiling Speakers
RCS - Twin-Cone Torsion-Mount Speaker Package
Description
Features
Specifications
Applications
Description

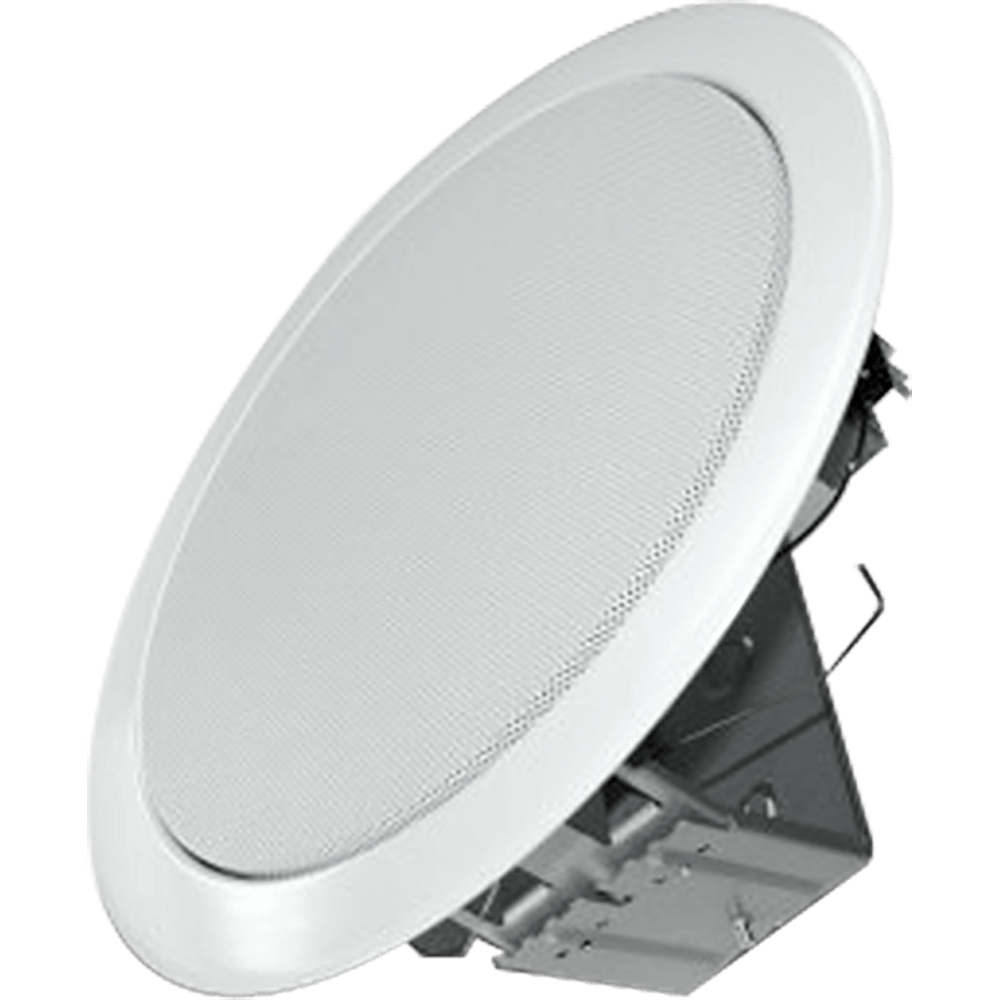

RCS5T72 Description
The Penton Audio RCS5T has a two-part, torsion-mount, CRS grille baffle with a steel mesh grille to present a stylish hardware-free look. Easy to install, terminal block connection and spade-lug transformer taps allow fast, easy installation and/or wattage change.
This speaker package combines the wide dispersion of a 5″, twin-cone loudspeaker with aesthetic excellence, installation advantages and a versatile four-watt, 70.7/25-volt transformer. Economy is provided by efficient design combined with a five-ounce magnet. The popular grille design is finished in non-reflecting ceiling white.
RCS5XT72 Description
The Penton Audio RCS5XT is a premium speaker package with a coaxial 5-1/4″ speaker mounted to a CRS, torsion mount baffle, complete with an attached high-quality, dual-voltage transformer.
Two-part steel mesh grilles present a stylish hardware-free look. Finished in non-reflecting ceiling white, the popular RCS grille is round.
Installer friendly, terminal block connections and spade-lug transformer taps allow fast, easy installation and/or wattage changes.
For a smoother frequency response, model uses an integral 10-ounce, 5″ coaxial loudspeaker, including a 1″ Mylar dome tweeter complete with a 1/2″ moving coil and neodymium magnet. With aesthetic excellence, installation advantages, and a versatile eight-watt, 70.7/25-volt transformer, these speaker packages make the difference between ordinary and superior installations.

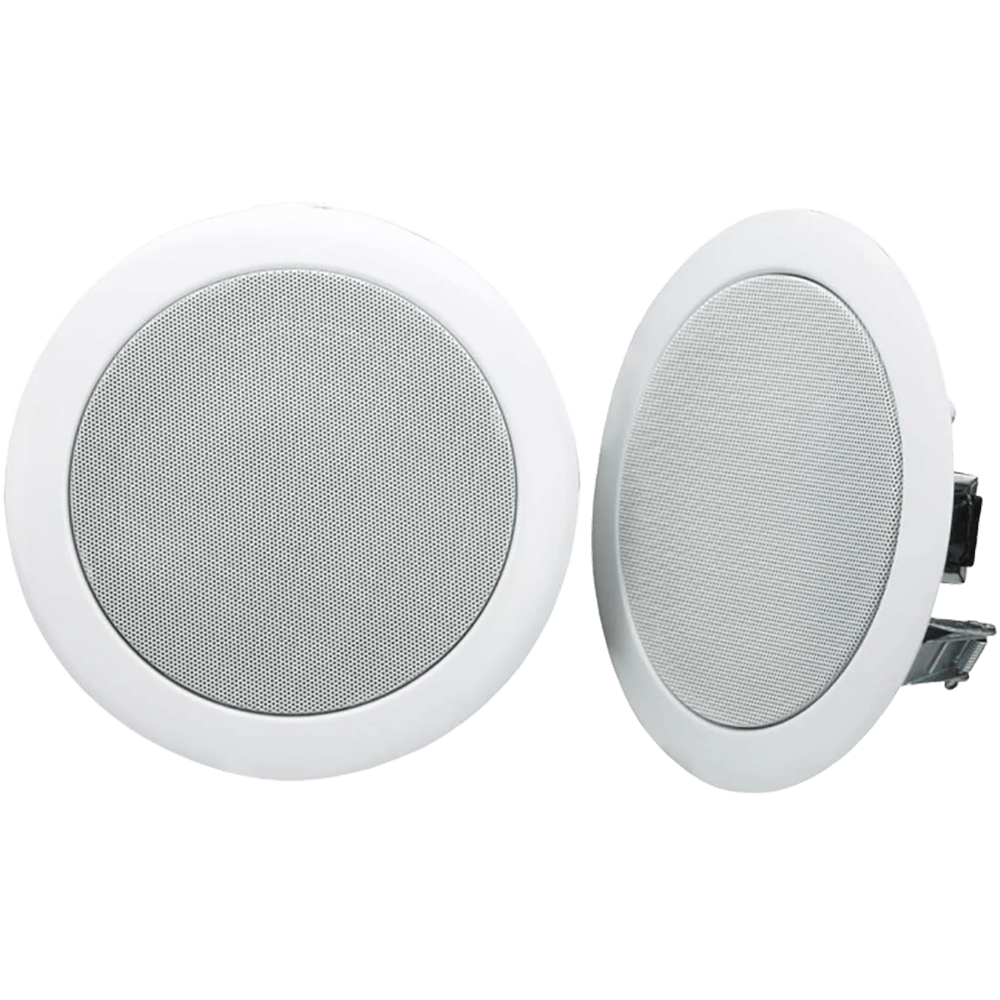

RCS6T72 Description
The Penton Audio RCS6T speaker package is very attractive, yet offers unusual installation advantages. Its hardware-free look is courtesy of a two-part, torsion-mount, steel mesh grille. Wide dispersion is provided by a 6″ twin-cone, 10-watt loudspeaker. Also included in this speaker package is a versatile 5-watt, 70.7/25-volt transformer.
Besides torsion advantages, installation is speeded by its terminal block connection and spade-lug transformer taps. Typical mounting is made without hardware using the optional BRG6 tile bridge and BBX6 steel backbox. The MBK6 mounting bracket is also available to mount speaker in “blind-mount” applications. The popular round RCS speaker package is finished in non-reflecting ceiling white.
RCS6XT72 Description
Aesthetic excellence, a robust 10-ounce magnet and a superb 1″ Mylar dome tweeter complete with a 1/2″ moving coil and neodymium magnet make Penton Audio’s RCS6XT a premium speaker package. Unit combines the wide dispersion associated with 6″ loudspeakers with torsion-spring installation advantages and a versatile 8-watt, 70.7/25-volt transformer.
This speaker package has a two-part, torsion-mount, CRS grille baffle with a steel mesh grille to present a stylish hardware-free look. Its terminal block connection and spade-lug trans-former taps combined with torsion properties allow quick and easy installation and/or wattage changes. The popular round speaker package is finished in non-reflecting ceiling white.
RCS8T72 Description
The Penton Audio RCS8T has a round, two-part, torsion-mount, CRS grille baffle with a steel mesh grille to present a stylish hardware-free look. Installer friendly, it installs quickly and efficiently. Its terminal block connection and spadelug transformer taps allow fast, easy installation and/or wattage changes.
These speaker packages combine the wide dispersion of a 8″ twin-cone loudspeaker with aesthetic excellence, installation advantages and a versatile 5-watt, 70.7/25-volt transformer. Economy is enhanced by efficient design combined with a 5-ounce magnet. The RCS8T Series is finished in a ceiling white with reduced reflectivity.
RCS8XT72 Description
The premium Penton Audio RCS8XT speaker package uses a coaxial, 8″ cone loudspeaker with 10-ounce magnet and 1″ Mylar dome tweeter complete with a 1/2″ moving coil and neodymium magnet. This model is fully assembled including transformer and grille.
Finished in a non-reflecting ceiling white, its elegant two-part, round, torsion mount CRS baffle presents an elegant hardware-free appearance and is exceptionally installer friendly.
Its exclusive terminal block and spadelug taps allow fast connection as well as wattage selection and/or changes. The RCS8XT is complete with a versatile 8-watt, 70.7/25-volt transformer.
Unit is designed to be quickly mounted in a BBX8 enclosure with BRG8 tile bridge without any hardware. MBK8 mounting bracket provides “blind mounting” without a backbox in.
Features
RCS5T72 Features
- Time-tested Metal Grille with Hardware-free Appearance
- Torsion-mount Assembly for Fast/Easy Installation
- 5″ Twin-Cone for Good High-Frequency Dispersion
- Dual 70.7/25-volt Xfrmr with Spade-lug Taps
- Terminal Block Connection
RCS5XT72 Features
- Time-tested Metal Grille with Hardware-free Appearance
- Torsion-mount Assembly for Fast/Easy Installation
- Coaxial for Smooth High- Frequency Dispersion
- Dual 70.7/25-volt Xfrmr with Spade-lug Taps
- Terminal Block Connection
RCS6T72 Features
- Fashionable Metal Grille with Hardware-free Appearance
- Torsion-mount Assembly for Fast/Easy Installation
- Twin-Cone for Good High-Frequency Dispersion
- Dual 70.7/25-volt Xfrmr with Spade-lug Taps
- Terminal Block Connection
RCS6XT72 Features
- Hardware-free Metal Grille for Prestige Appearance
- Terminal Block Connection
- Torsion-mount Assembly for Fast/Easy Installation
- Coaxial for Smooth High-Frequency Dispersion
- Dual 70.7/25-volt Xfrmr with Spade-lug Taps
RCS8T72 Features
- Time-tested Metal Grille with Hardware-free Appearance
- Torsion-mount Assembly for Fast/Easy Installation
- Twin-Cone for Good High-Frequency Dispersion
- Dual 70.7/25-volt Xfrmr with Spade-lug Taps
- Terminal Block Connection
RCS8XT72 Features
- Time-tested Metal Grille with Hardware-free Appearance
- Torsion-mount Assembly for Fast/Easy Installation
- Coaxial Tweeter for Smooth High-Frequency Dispersion
- Dual 70/7/25-volt Xfrmr with Spade-lug Taps
- Terminal Block Connection
Specifications
RCS5T72 Specifications
| CONE SPEAKER SIZE: | 5-1/4″ (134 mm) |
| FREQUENCY RESPONSE: | 100-20,000 Hz +/- 6 dB |
| POWER HANDLING (RAW DRIVER): | 10 watts |
| SPL @ 1W 1M: | 93 dB |
| DISPERSION @ 2 KHZ: | 105 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 4.6 |
| CONE DESIGN: | Twin Cone |
| CONE MATERIAL: | Paper |
| MAGNET WEIGHT: | 5.34 oz |
| TRANSFORMER MAX INSERTION LOSS: | 1.5 dB |
| TRANSFORMER TAP CHANGE: | Movable Spade Lug |
| CONNECTION: | Via Terminal Block |
| 70.7-VOLT TRANSFORMER TAPS: | 5, 2, 1, 0.5, 0.25 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 1K, 2.5K, 5K, 10K, 20K |
| 25-VOLT TRANSFORMER TAPS: | 5, 2, 1, 0.625, 0.25 |
| 25-VOLT TRANSFORMER IMPEDANCE: | 125, 312, 625, 1K, 2.5K |
| APPROVALS: | CE |
| MOUNTING: | Quick-Release Torsion Springs Locked onto Baffle |
| BAFFLE MATERIAL: | Two-part CRS Steel with Steel Mesh |
| FINISH: | White, Non-reflective, Baked Epoxy |
| SUGGESTED MOUNTING ACCESSORIES: | BBX5 Steel Backbox BRG5 Tile Bridge MBK5 Mounting Bracket |
| DIMENSIONS, INCH (MM): | 7.44 x 2.24 (189 x 57) |
| NET WEIGHT LBS (KGS): | 2.05 (0.93) |
RCS5XT72 Specifications
| CONE SPEAKER SIZE: | 5-1/4″ (134 mm) |
| FREQUENCY RESPONSE: | 60-18,000 Hz +/- 5 dB |
| POWER HANDLING (RAW DRIVER): | 20 watts |
| SPL @ 1W 1M: | 91 dB |
| DISPERSION @ 2 KHZ: | 120 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 5.1 |
| CONE DESIGN: | Coaxial |
| TWEETER TYPE: | 1″ Mylar Dome with 1/2″ Moving Coil and Neodymium Magnet |
| CONE MATERIAL: | Paper with Rubber Surround |
| MAGNET WEIGHT: | 10.0 oz |
| TRANSFORMER MAX INSERTION LOSS: | 0.8 dB |
| TRANSFORMER TAP CHANGE: | Movable Spade Lug |
| CONNECTION: | Via Terminal Block |
| 70.7-VOLT TRANSFORMER TAPS: | 8, 4, 2, 1, 0.5 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 625, 1.25K, 2.5K, 5K, 10K |
| 25-VOLT TRANSFORMER TAPS: | 8, 4, 2, 1, 0.5 |
| 25-VOLT TRANSFORMER IMPEDANCE: | 78, 158, 312, 625, 1.25K |
| APPROVALS: | CE |
| MOUNTING: | Quick-Release Torsion Springs Locked onto Baffle |
| BAFFLE MATERIAL: | Two-part CRS Steel with Steel Mesh |
| FINISH: | White, Non-reflective, Baked Epoxy |
| SUGGESTED MOUNTING ACCESSORIES: | BBX5 Steel Backbox BRG5 Tile Bridge MBK5 Mounting Bracket |
| DIMENSIONS, INCH (MM): | 7.44 x 2.24 (189 x 57) |
| NET WEIGHT LBS (KGS): | 2.07 (0.94) |
RCS6T72 Specifications
| CONE SPEAKER SIZE: | 6-1/2″ 165 mm) |
| FREQUENCY RESPONSE: | 85-20,000 Hz +/- 6 dB |
| POWER HANDLING (RAW DRIVER): | 10 watts |
| SPL @ 1W 1M: | 94 dB |
| DISPERSION @ 2 KHZ: | 90 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 7.2 |
| CONE DESIGN: | Twin Cone |
| CONE MATERIAL: | Paper |
| MAGNET WEIGHT: | 5.34 oz |
| TRANSFORMER MAX INSERTION LOSS: | 1.5 dB |
| TRANSFORMER TAP CHANGE: | Movable Spade Lug |
| CONNECTION: | Via Terminal Block |
| 70.7-VOLT TRANSFORMER TAPS: | 5, 2, 1, 0.5, 0.25 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 1K, 2.5K, 5K, 10K, 20K |
| 25-VOLT TRANSFORMER TAPS: | 5, 2, 1, 0.625, 0.25 |
| 25-VOLT TRANSFORMER IMPEDANCE: | 125, 312, 625, 1K, 2.5K |
| APPROVALS: | CE |
| MOUNTING: | Quick-Release Torsion Springs Locked onto Baffle |
| BAFFLE MATERIAL: | Two-part CRS Steel with Steel Mesh |
| FINISH: | White, Non-reflective, Baked Epoxy |
| SUGGESTED MOUNTING ACCESSORIES: | BBX6 Steel Backbox BRG6 Tile Bridge MBK6 Mounting Bracket |
| DIMENSIONS, INCH (MM): | 9.41 x 2.32 (239 x 59) |
| NET WEIGHT LBS (KGS): | 1.96 (0.89) |
RCS6XT72 Specifications
| CONE SPEAKER SIZE: | 6-1/2″ (165 mm) |
| FREQUENCY RESPONSE: | 60-18,000 Hz +/- 6 dB |
| POWER HANDLING (RAW DRIVER): | 20 watts |
| SPL @ 1W 1M: | 92 dB |
| DISPERSION @ 2 KHZ: | 120 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 5.1 |
| CONE DESIGN: | Coaxial |
| TWEETER TYPE: | 1″ Mylar Dome with 1/2″ Moving Coil and Neodymium Magnet |
| CONE MATERIAL: | Paper with Rubber Surround |
| MAGNET WEIGHT: | 10.0 oz |
| TRANSFORMER MAX INSERTION LOSS: | 0.8 dB |
| TRANSFORMER TAP CHANGE: | Movable Spade Lug |
| CONNECTION: | Via Terminal Block |
| 70.7-VOLT TRANSFORMER TAPS: | 8, 4, 2, 1, 0.5 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 625, 1.25K, 2.5K, 5K, 10K |
| 25-VOLT TRANSFORMER TAPS: | 8, 4, 2, 1, 0.5 |
| 25-VOLT TRANSFORMER IMPEDANCE: | 78, 158, 312, 625, 1.25K |
| APPROVALS: | CE |
| MOUNTING: | Quick-Release Torsion Springs Locked onto Baffle |
| BAFFLE MATERIAL: | Two-part CRS Steel with Steel Mesh |
| FINISH: | White, Non-reflective, Baked Epoxy |
| SUGGESTED MOUNTING ACCESSORIES: | BBX6 Steel Backbox BRG6 Tile Bridge MBK6 Mounting Bracket |
| DIMENSIONS, INCH (MM): | 9.41 x 1.97 (239 x 50) |
| NET WEIGHT LBS (KGS): | 2.29 (1.04) |
RCS8T72 Specifications
| CONE SPEAKER SIZE: | 8″ (203 mm) |
| FREQUENCY RESPONSE: | 60-20,000 Hz +/- 6 dB |
| POWER HANDLING (RAW DRIVER): | 15 watts |
| SPL @ 1W 1M: | 95 dB |
| DISPERSION @ 2 KHZ: | 100 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 6.9 |
| CONE DESIGN: | Twin Cone |
| CONE MATERIAL: | Paper |
| MAGNET WEIGHT: | 5.34 oz |
| TRANSFORMER MAX INSERTION LOSS: | 1.5 dB |
| TRANSFORMER TAP CHANGE: | Movable Spade Lug |
| CONNECTION: | Via Terminal Block |
| 70.7-VOLT TRANSFORMER TAPS: | 5, 2, 1, 0.5, 0.25 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 1K, 2.5K, 5K, 10K, 20K |
| 25-VOLT TRANSFORMER TAPS: | 5, 2, 1, 0.625, 0.25 |
| 25-VOLT TRANSFORMER IMPEDANCE: | 125, 312, 625, 1K, 2.5K |
| APPROVALS: | CE |
| MOUNTING: | Quick-Release Torsion Springs Locked onto Baffle |
| BAFFLE MATERIAL: | Two-part CRS Steel with Steel Mesh |
| FINISH: | White, Non-reflective, Baked Epoxy |
| SUGGESTED MOUNTING ACCESSORIES: | BBX8 Steel Backbox BRG8 Tile Bridge MBK8 Mounting Bracket |
| DIMENSIONS, INCH (MM): | 7.44 x 2.24 (189 x 57) |
| NET WEIGHT LBS (KGS): | 2.05 (0.93) |
RCS8XT72 Specifications
| CONE SPEAKER SIZE: | 8″ (203 mm) |
| FREQUENCY RESPONSE: | 40-18,000 Hz +/- 6 dB |
| POWER HANDLING (RAW DRIVER): | 20 watts |
| SPL @ 1W 1M: | 94 dB |
| DISPERSION @ 2 KHZ: | 96 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 6.8 |
| CONE DESIGN: | Coaxial |
| TWEETER TYPE: | 1″ Mylar Dome with 1/2″ Moving Coil and Neodymium Magnet |
| CONE MATERIAL: | Paper with Rubber Surround |
| MAGNET WEIGHT: | 10.0 oz |
| TRANSFORMER MAX INSERTION LOSS: | 0.8 dB |
| TRANSFORMER TAP CHANGE: | Movable Spade Lug |
| CONNECTION: | Via Terminal Block |
| 70.7-VOLT TRANSFORMER TAPS: | 8, 4, 2, 1, 0.5 |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 625, 1.25K, 2.5K, 5K, 10K |
| 25-VOLT TRANSFORMER TAPS: | 8, 4, 2, 1, 0.5 |
| 25-VOLT TRANSFORMER IMPEDANCE: | 78, 158, 312, 625, 1.25K |
| APPROVALS: | CE |
| MOUNTING: | Quick-Release Torsion Springs Locked onto Baffle |
| BAFFLE MATERIAL: | Two-part CRS Steel with Steel Mesh |
| FINISH: | White, Non-reflective, Baked Epoxy |
| SUGGESTED MOUNTING ACCESSORIES: | BBX8 Steel Backbox BRG8 Tile Bridge MBK8 Mounting Bracket |
| DIMENSIONS, INCH (MM): | 11.24 x 2.91 (280 x 74) |
| NET WEIGHT LBS (KGS): | 3.57 (1.62) |
Applications
RCS5T72 Applications
Generally, a 5″ cone speaker offers a wider coverage angle than a typical 8 without greatly compromising speaker efficiency or demanding higher power. Therefore, it is an excellent choice when ceiling heights are low. Naturally, since there is less cone area present, the low frequencies are not as pronounced.
The 5″ RCS speaker package is an excellent choice for value-designed in-ceiling audio projects. It is perfect for low-ceiling applications in industry, commercial and institutions, including offices, banks, schools, restaurants, hotel/motels, malls – wherever precise transmission of audio is required.
RCS5XT72 Applications
A 5″ cone speaker will offer a wider coverage angle than an 8″ in low ceiling applications without greatly compromising speaker efficiency or demanding higher power amplifiers.
The premium 5″ RCS speaker package is an excellent choice for up-scale audio projects in commercial and institutional settings, including boardrooms, offices, upscale clothing stores, banks, schools, restaurants, hotel/motels, malls – wherever high-quality audio is desired.
RCS6T72 Applications
Because 8″ speakers often cost less, they are used even when ceiling heights do not dictate their use. However, the wider dispersion and lower cost of the 6″ Penton family allow the systems contractor to take advantage of the wide-coverage angle inherent in a 5″ speaker and low-frequency response associated with an 8″.
The 6″ RCS speaker package is an excellent choice for value-designed in-ceiling audio projects. The speakers are designed for commercial, industrial and institutional applications including offices, banks, schools, restaurants, hotel/motels, malls – wherever precise transmission of audio is needed.
RCS6XT72 Applications
6″ speakers are a fine tool for the sound contractor and audio designer. When ceiling heights don’t warrant the use of an 8″ speaker, a 6″ loudspeaker will typically provide better coverage at less cost but with significantly more bass than a 5″.
The 6″ RCS speaker package is an fine choice for value-designed in-ceiling audio projects. The speakers are designed for commercial, industrial and institutional applications including offices, banks, schools, restaurants, hotel/motels, malls – wherever precise transmission of audio is required.
RCS8T72 Applications
8″ speakers are often the choice for ceiling applications since they provide good bass frequency response and an appropriate coverage angle, thereby more precisely covering listening areas. This combined with speaker efficiency requiring minimum amplifier power, contributes to its popularity.
The 8″ RCS speaker packages are excellent choices for value-designed in-ceiling audio projects where aesthetics are a key consideration. Perfect for applications in industry, commercial and institutions, they are designed for offices, banks, schools, restaurants, hotel/motels, malls – wherever precise transmission of audio is required.
RCS8XT72 Applications
The 8″ RCS8XT speaker package is an excellent choice for no compromise in-ceiling audio projects where aesthetics and great sound are a key consideration.
Unit’s unusually smooth frequency response, good low frequencies and postmounted tweeter will enhance the perceived environment in most higher ceiling commercial applications.
Typical applications include universities, hotel/motels, offices, banks, schools, restaurants, malls and wherever precise, wide-range transmission of audio is a necessity.
