Drivers & Components
SP8053 Series Drivers
Description
Features
Specifications
Description
SP816TCO Description
The Penton Audio SP816TCO is a 20-watt, 8″ full-range speaker assembly. This premium model uses a coaxial driver with 3-inch-wide cone tweeter for smooth dispersion and long-term reliability.
High-quality components are used in the manufacture of each Penton speaker. These include steel baskets with a rust preventative coating, twin cones (on the tweeter an aluminum voice coil) and high-temperature copper voice coil on the low-frequency driver.
This family uses speaker baskets that mount on standard bolt circles of 7.626″ (195 mm). They may be mounted in various types of speaker enclosures and mate with nearly all popular mounting accessories including Penton G8M (CRS) or G8P (ABS) grilles, and BBX8B enclosure with BRG8B tile bridge. Standard mounting fasteners are also available.
The assembly uses a pre-mounted 5-watt, 70.7/25-volt transformer with an insertion loss no higher than 1.5 dB. 6″ five-conductor, color-coded wire provides easy connection via bare ends to 5, 2, 1, 0.5 and 0.25 watt taps.
SP Series coaxial loudspeakers are applicable for voice announce, background/foreground music and signal reproduction.
SP8053 / SP8053H / SP8053T Description
The Penton Audio SP8053 Series are 8″ 10-watt, twin-cone, full-range speaker assemblies. Each is designed for long-term reliability, smooth frequency response and wide dispersion.
Each model in this series is made using high quality components including steel baskets treated with rust-preventative coating, copper voice coils, high performance transformers and twin cones.
Speaker baskets mount on a standard bolt circle of 7.625″ (195 mm) and mate with nearly all popular mounting accessories including Penton G8M (CRS) or G8P (ABS) grilles and BBX8B enclosure with BRG8B tile bridge. Standard mounting fasteners are also available.
The SP8053 is an 8-ohm model available as a stand alone or ready to accept customer supplied transformer.

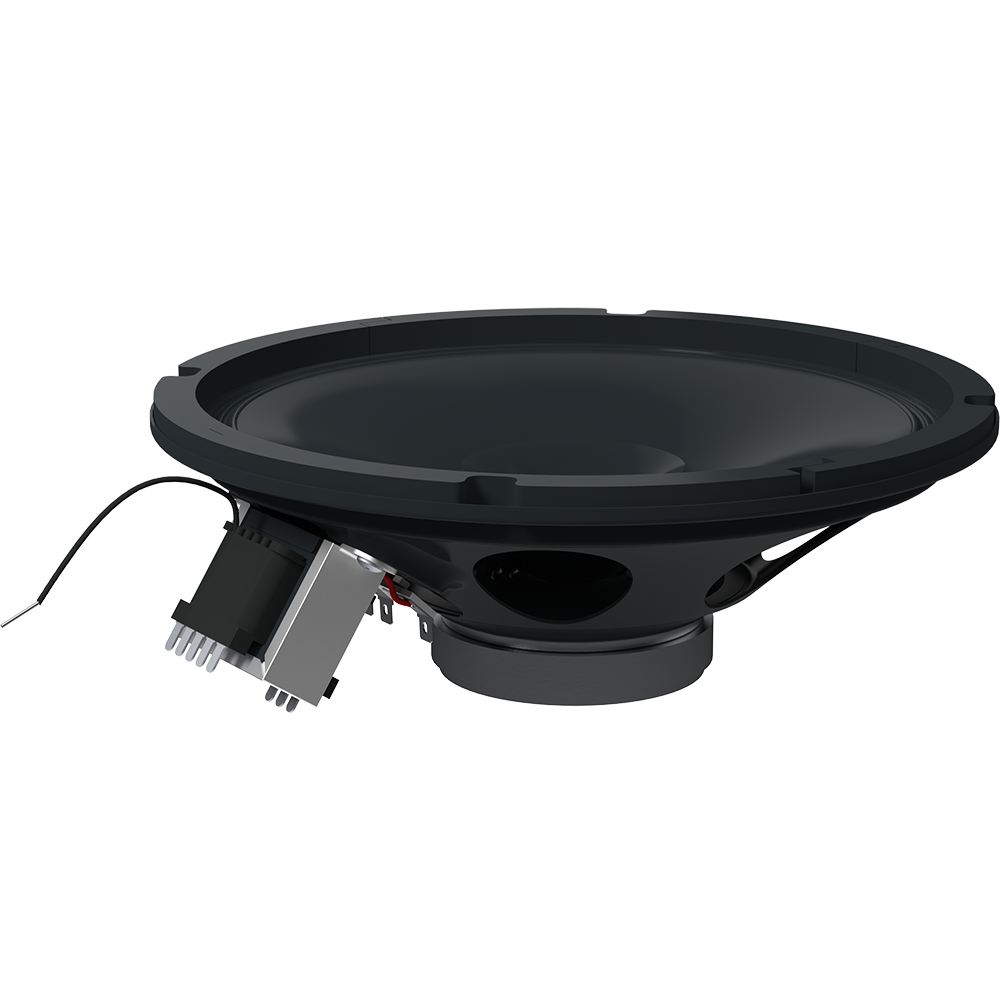

The SP8053T assembly uses the same 8-ohm, twin-cone driver, but adds a premounted 5-watt 70.7/25-volt transformer. Connection is made directly via wire nuts (see specifications).
Identical in basic design, the SP8053H utilizes a 45-ohm voice coil.
Models are applicable for situations including voice announce, background music, signal reproduction and applications requiring clear audio reproduction.
Features
SP816TCO Features
- Coaxial Design for Great High-Frequency Dispersion
- 3″ Cone Tweeter
- 25/70.7-volt Transformer
- Smooth Frequency Response
SP8053 / SP8053H / SP8053T Features
- Twin-Cone Design for Good High-Frequency Dispersion
- Choose 8-ohm, 45-ohm or Constant-Voltage
- “T” Version has Dual 70.7/25-volt Transformer
Specifications
SP816TCO Specifications
| CONE SPEAKER SIZE: | 8″ (205 mm) |
| FREQUENCY RESPONSE: | 40-20,000 Hz +/- 5 dB |
| POWER HANDLING: | 20 watts |
| DRIVER SECONDARY IMPEDANCE | 8 ohms |
| SPL @ 1W 1M: | 94 dB |
| DISPERSION @ 2 KHZ (6 dB DOWN): | 120 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 6.2 |
| CONE DESIGN: | Coaxial |
| CONE MATERIAL: | Paper, Self-edged Surround |
| VOICE COIL DIAMETER, INCH (MM) | Low Frequency: 1.0 (25.4) High Frequency: 0.5625 (14.3) |
| VOICE COIL MATERIAL | Low Freq: High-temperature Copper High Freq: Aluminum |
| MAGNET WEIGHT (CERAMIC): | Low Frequency: 10 oz High Frequency: 2 oz |
| FLUX DENSITY: | 11,500 Gauss |
| CONNECTION: | Via Wire Nuts |
| 70.7-VOLT XFRMR TAPS/IMPEDANCE: | Yellow: 4 watts 1.25K Green: 2 watts 2.5K Blue: 1 watt 5K Violet: 0.5 watt 10K White: 0.25 watt 20K Black: Common —- |
| 25-VOLT XFRMR TAPS/IMPEDANCE: | Brown: 4 watts 156 Red: 2 watts 312 Orange: 1 watt 625 Yellow: 0.625 watt 1.25K Green: 0.25 watt 2.5K Black: Common —- |
| TRANSFORMER MAX INSERTION LOSS: | 1.5 dB |
| TRANSFORMER TAP CHANGE: | 5-1/2″ Stripped and Tinned Leads |
| SUPPLIED MOUNTING ACCESSORIES: | Available but Not Included |
| SUGGESTED MOUNTING ACCESSORIES: | G8M – CRS Grille G8P – Molded ABS Grille BBX8B – Steel Backbox BRG8B – Tile Bridge |
| DIMENSIONS, INCH (MM): | 8.125 x 3.27 (205 x 83) |
| NET WEIGHT LBS (KGS): | 2.60 (1.18) |
SP8053 / SP8053H / SP8053T Specifications
| CONE SPEAKER SIZE: | 8″ (205 mm) |
| FREQUENCY RESPONSE: | 60-20,000 Hz +/- 6 dB |
| POWER HANDLING: | 10 watts |
| DRIVER IMPEDANCE | SP-8053: 8 ohms SP-8053H: 45 ohms SP-8053T: 8 ohms – secondary* |
| SPL @ 1W 1M: | 95 dB |
| DISPERSION @ 2 KHZ (6 dB DOWN): | 100 degrees |
| DIRECTIVITY Q FACTOR @ 2 KHZ: | 6.8 |
| CONE DESIGN: | Twin Cone |
| CONE MATERIAL: | Paper, Self-edged Surround |
| VOICE COIL DIAMETER, INCH (MM) | 0.75 (20) |
| VOICE COIL MATERIAL | Copper |
| MAGNET WEIGHT (CERAMIC): | 5.34 oz |
| FLUX DENSITY: | 11,500 Gauss |
| APPROVALS: | CE |
| 70.7-VOLT TRANSFORMER TAPS: | Yellow: 4 watts Green: 2 watts Blue: 1 watt Violet: 0.5 watt White: 0.25 watt Black: Common |
| 70.7-VOLT TRANSFORMER IMPEDANCE: | 1.25K, 2.5K, 5K, 10K, 20K |
| 25-VOLT TRANSFORMER TAPS | Brown: 4 watts Red: 2 watts Orange: 1 watt Yellow: 0.5 watt Green: 0.25 watt Black: Common |
| 25-VOLT TRANSFORMER IMPEDANCE: | 156, 312, 625, 1.25K, 2.5K |
| CONNECTION: | Via Wire Nuts |
| SUPPLIED MOUNTING ACCESSORIES: | Not Included but Available |
| SUGGESTED MOUNTING ACCESSORIES: | G8M – CRS Grille G8P – Molded ABS Grille BBX8B – Steel Backbox BRG8B – Tile Bridge MBK8 – Mounting Bracket |
| DIMENSIONS, INCH (MM): | 8.125 x 2.68 (205 x 68) |
| NET WEIGHT LBS (KGS): | SP8053: 1.15 (0.52) SP8053H: 1.15 (0.52) SP8053T: 1.50 (0.68) |
