PPM-IT5 | Touch Screen IP Paging Console

Features
Specifications
Applications
Features

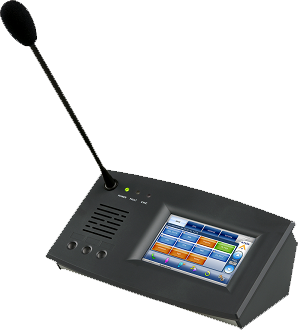

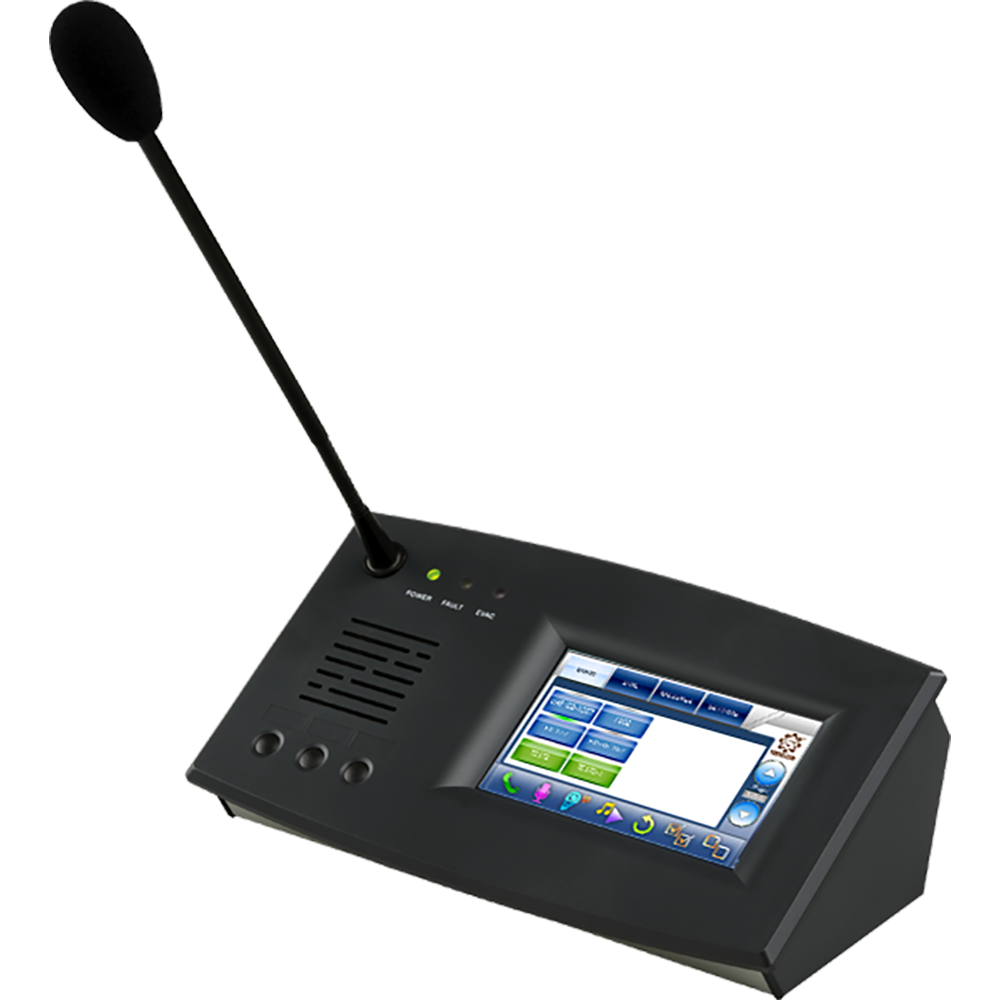

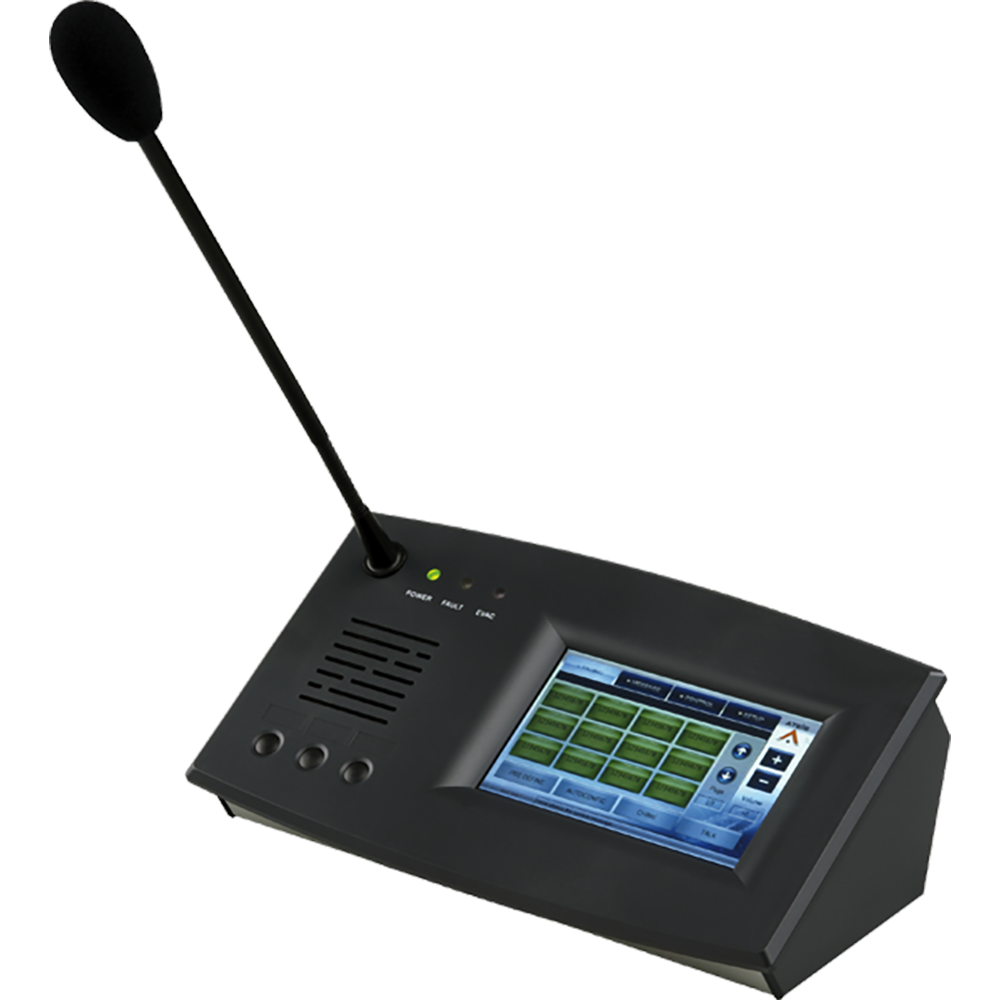

IP-Based Touch Screen Paging and Intercom Console
The PPM-IT5 is an IP touch paging console which allows intercom, call-paging, messages broadcasting, etc. All paging parameters needed for site operating can be programmed: zones assigned to the different buttons, name of zones, group of zones, messages triggering or event control. A total of 168 keys over 14 pages allow zone or group of zones selections. The prerecorded messages and the chime can be stored into the PPM-IT5 IP paging console.
All the settings are done through web pages with your favorite web browser. Thanks to powerful echo cancellation, the PPM-IT5 delivers clear sound for full duplex talk.
Specifications
- 5″ TFT LCD full colour touch panel
- Zone selection, paging and control
- Ethernet interface including PoE (Power Over Ethernet)
- Half or full duplex intercom with AEC (Acoustic
- Echo Cancellation) and NR (Noise Reduction)
- High quality gooseneck microphone and built in loudspeaker (5W)
- Web browser interface for management and monitor
- PoE or 24 VDC power supply (if PoE is not available)
- Automatic gain control on microphone input
- SNMP (Simple Network Management Protocol) for device management on IP networks
- 3 user-defined hardware keys on front panel (Power/Fault/EVAC)
- RJ9 for telephone headset and 2 mini-jack plugs for headset
- Dimensions (D x H x W): 9-7/8″ x 3-1/5″ x 5-1/2″ (250 x 80 x 140 mm)
- Microphone flex length: 11″ (280 mm)
- Weight: 2.4 lbs (1098g)
- Color: RAL7016

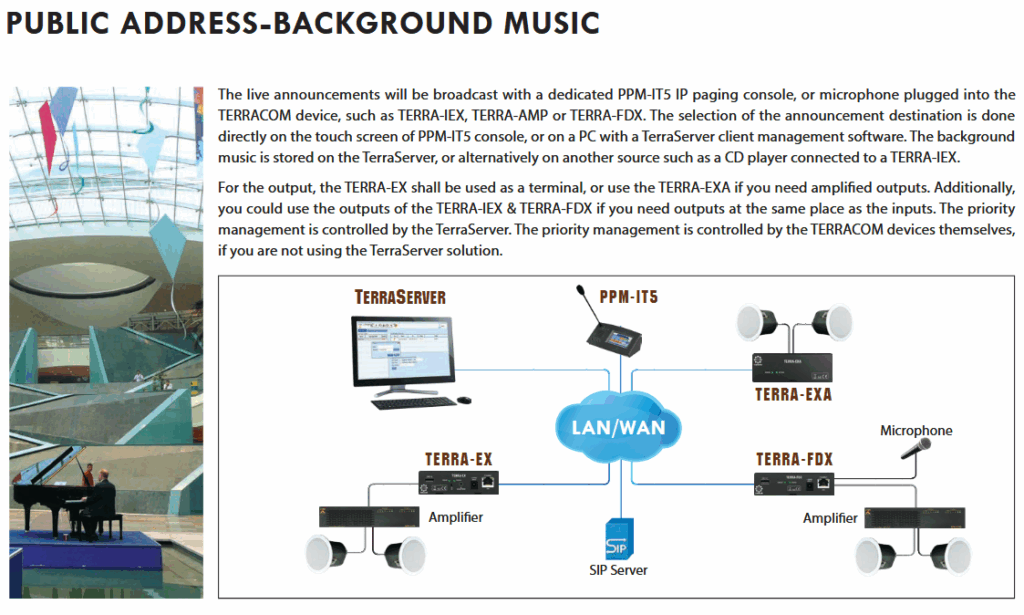

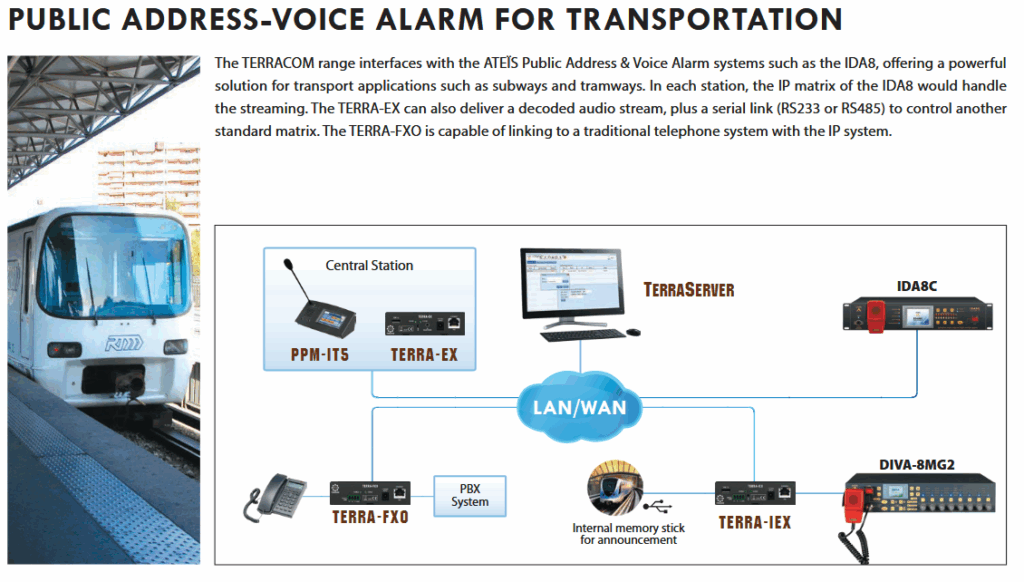

Applications
