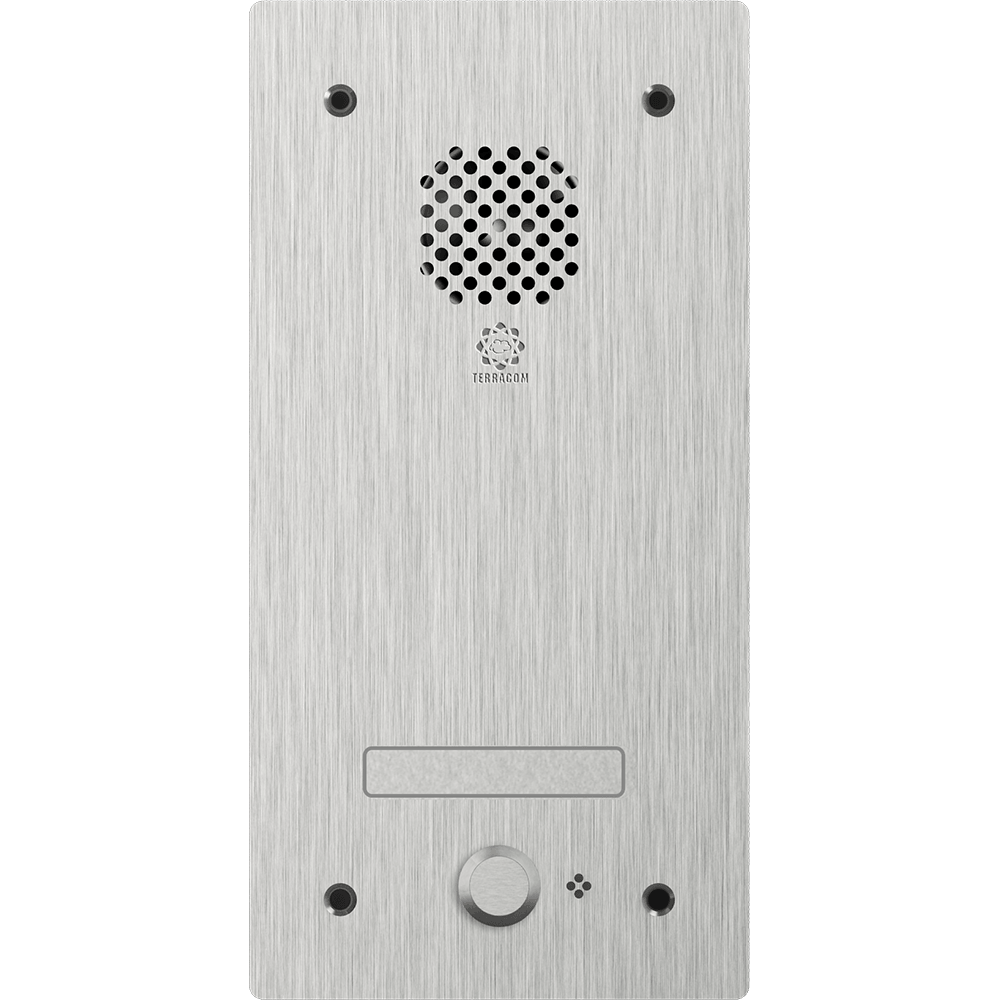

TERRA-DS | Wall-Mount IP Door Station
Features
Specifications
Applications
Models
Features
Flush-Mount SIP/IP Door Station
The TERRA-DS vandal-proof SIP/IP door station is an indispensable device for intercom solutions, featuring high quality hands-free SIP/IP communication. Additionally, the contact inputs/outputs on TERRA-DS allows for electronic door/gates lock down.
Specifications
TERRA-DS Specifications
- Full duplex intercom with Noise Reduction
- Web browser interface for device management and monitor
- SNMP (Simple Network Management Protocol) for device management on IP networks
- Stainless steel front panel
- Built-in condenser microphone
- Built-in loudspeaker (2.5W)
- 1 to 4 push-to-talk buttons on the front panel
- TERRA-DS1 = one-key button
- TERRA-DS2 = two-key buttons
- TERRA-DS3 = three-key buttons
- TERRA-DS4 = four-key buttons
- Support SIP based call
- 4 contact inputs and 2 contact outputs
- PoE or 24 VDC power supply (if PoE is not available)
- Power consumption: 3.12W
- Weight: 1.77 lbs (808g)
- Dimensions (D x H x W): 1.4″ x 8.7″ x 4.3″ (35 x 220 x 110 mm)
- Supported audio codec:
- SIP: G.711 ulaw, G.711 alaw, G.722, G.726-32, G.727-32, G.729, PCM16K
- SHOUTcast / icecast: MP3, AAC+
- Stream: G.711 ulaw, G.711 alaw, G.722, WAVE, MP3, PCM16K
- Record: G.711 ulaw, G.711 alaw, G.722, WAV, MP3
Applications
TERRA-DS Applications
Intercom PA and BGM Application
Models
TERRA-DS Models
| TERRA-DS1 | Mic/line-IN x 1, speaker-OUT x 1 & button x 1, button ext. port x 1, relay output contact x 2 |
| TERRA-DS2 | Mic/line-IN x 1, speaker-OUT x 1, button x 2, button ext. port x 1, relay output contact x 2 |
| TERRA-DS3 | Mic/line-IN x 1, speaker-OUT x 1, button x 3, button ext. port x 1, relay output contact x 2 |
| TERRA-DS4 | Mic/line-IN x 1, speaker-OUT x 1, button x 4, button ext. port x 1, relay output contact x 2 |
